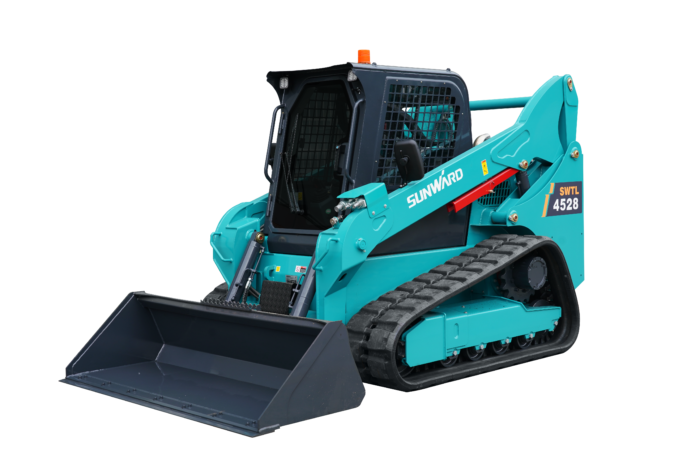

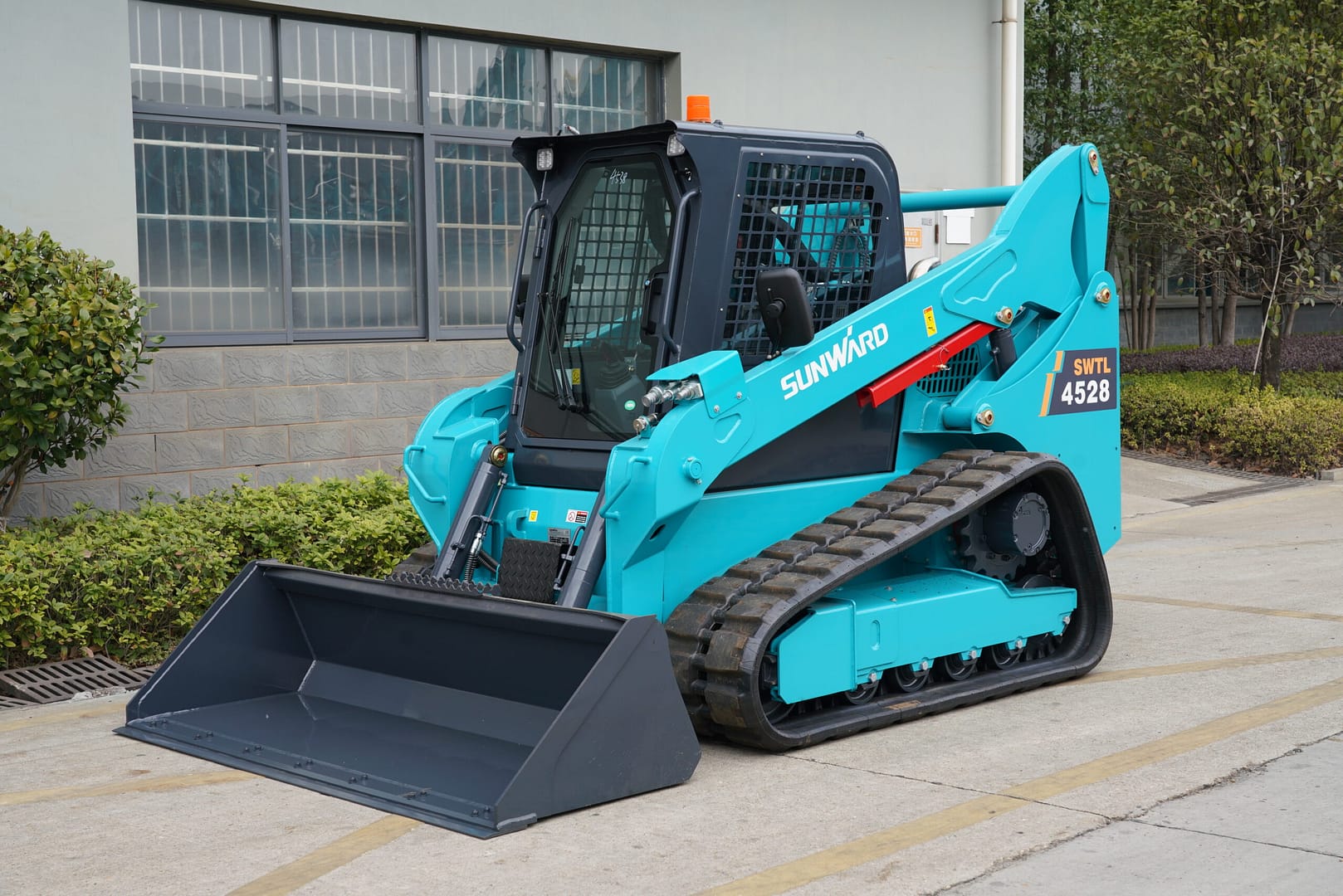

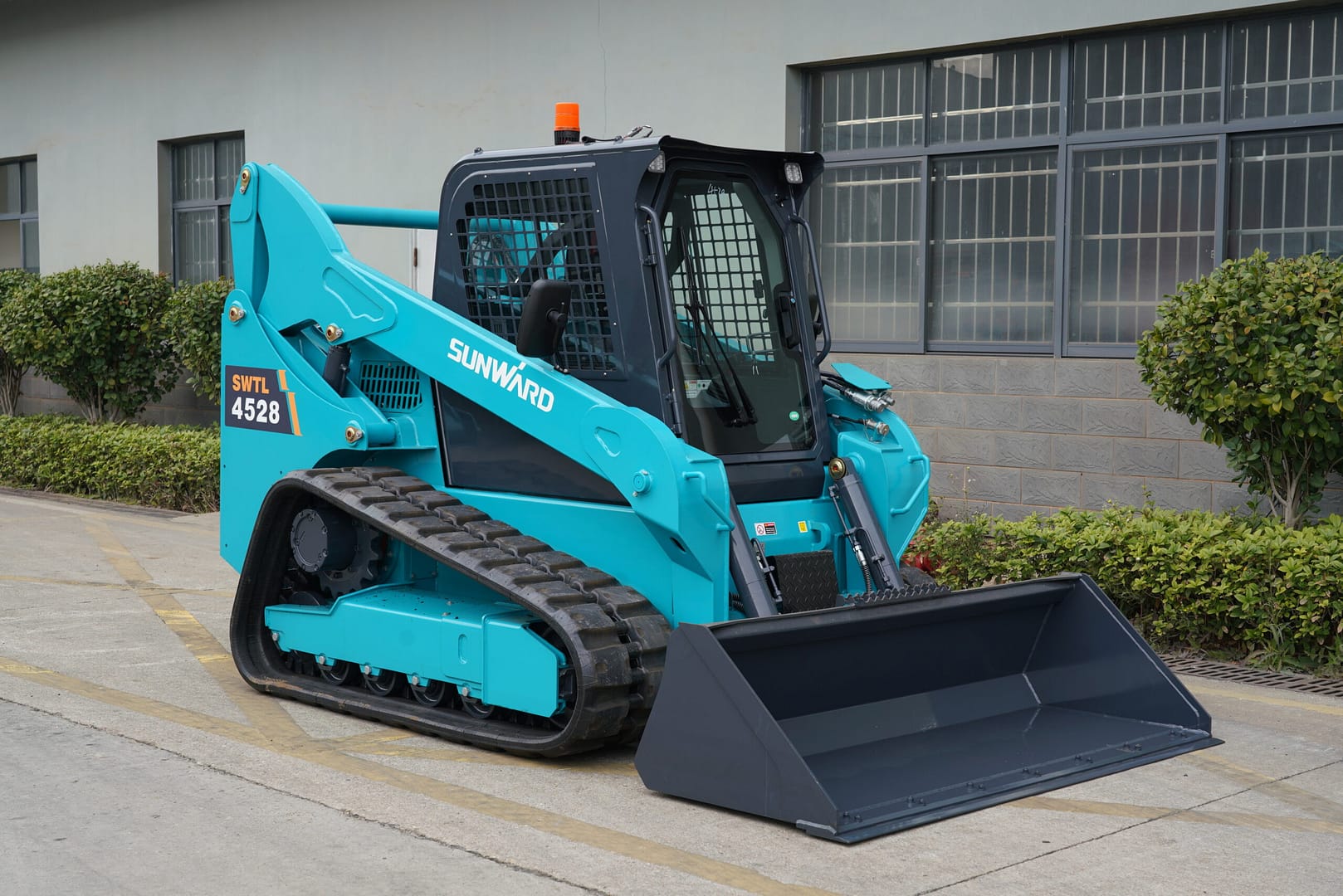

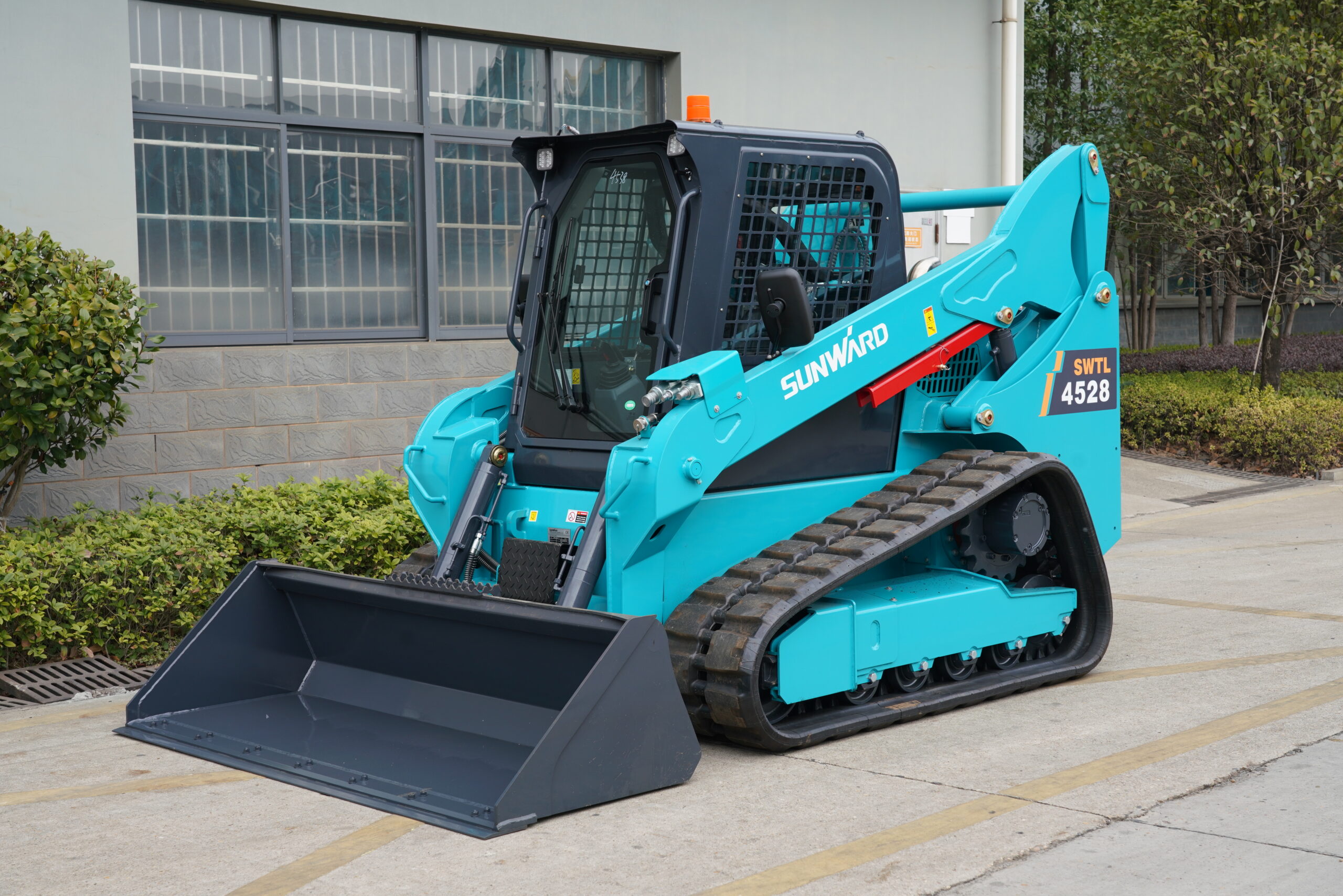

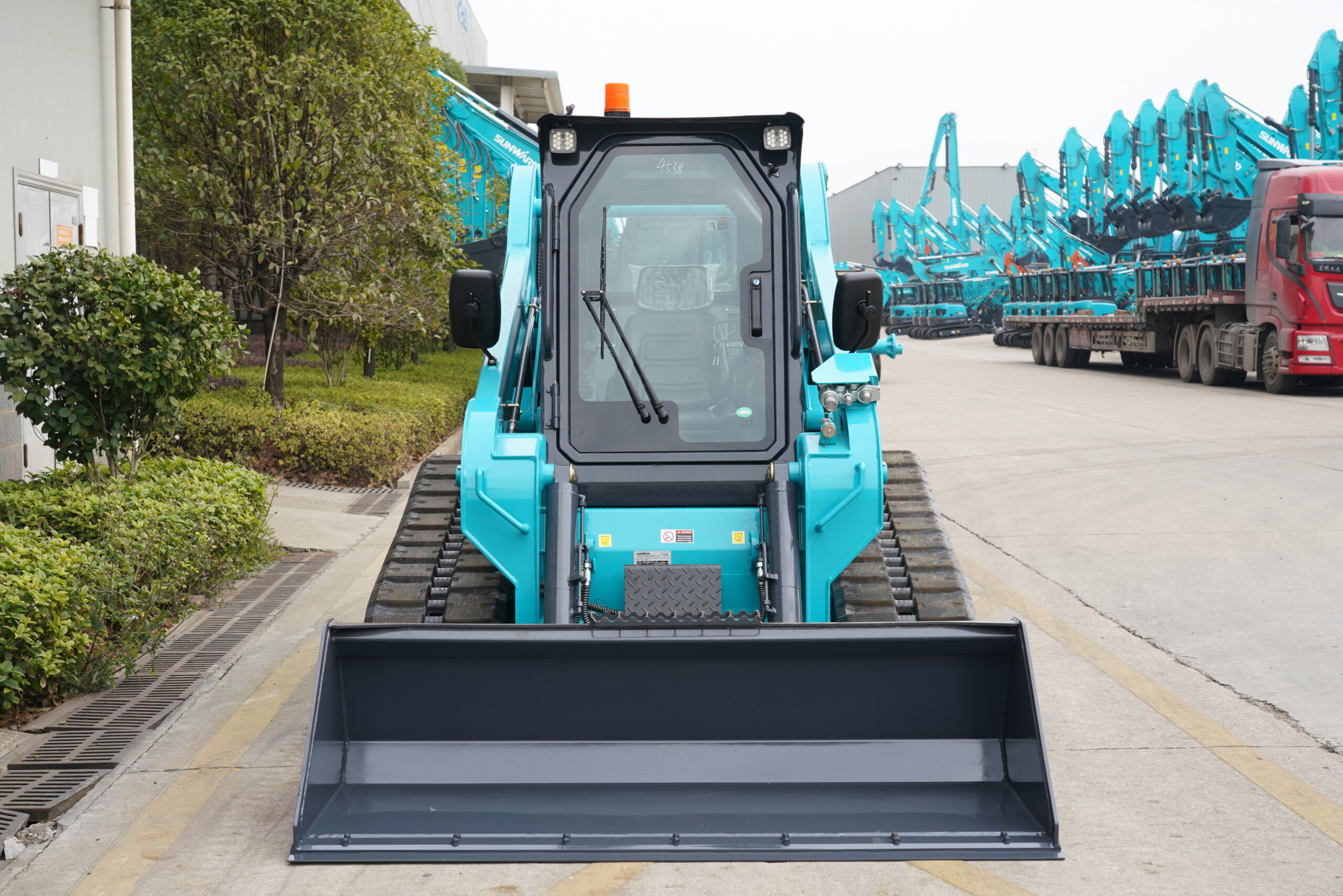

SWTL 4528

Need for a compact and versatile loader with good lift capacity, plenty of power whatever the terrain?
Thanks to the suspended undercarriage system and the tracks, the Sunward SWTL 4528 compact track loader offers excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt. It is also highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the geat breakout force and huge lift capacity.

Rated operating capacity: 1 200 kg
Tipping load: 3 430 kg
Rated power output: 55.4 kW
Operating weight: 4 400 kg
Lift height: 2 467 mm
Breakout force (bucket): 3 385 kg


SUNWARD SWTL 4528

Need for a compact and versatile loader with good lift capacity, plenty of power whatever the terrain?

Thanks to the suspended undercarriage system and the tracks, the Sunward SWTL 4528 compact track loader offers excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt.

It is also highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.

The powerful Kubota engine offers performance, exceptional reliability, long service life and complies with the European Union’s Stage V emission requirements. Maintenance and service are also easily accessible.

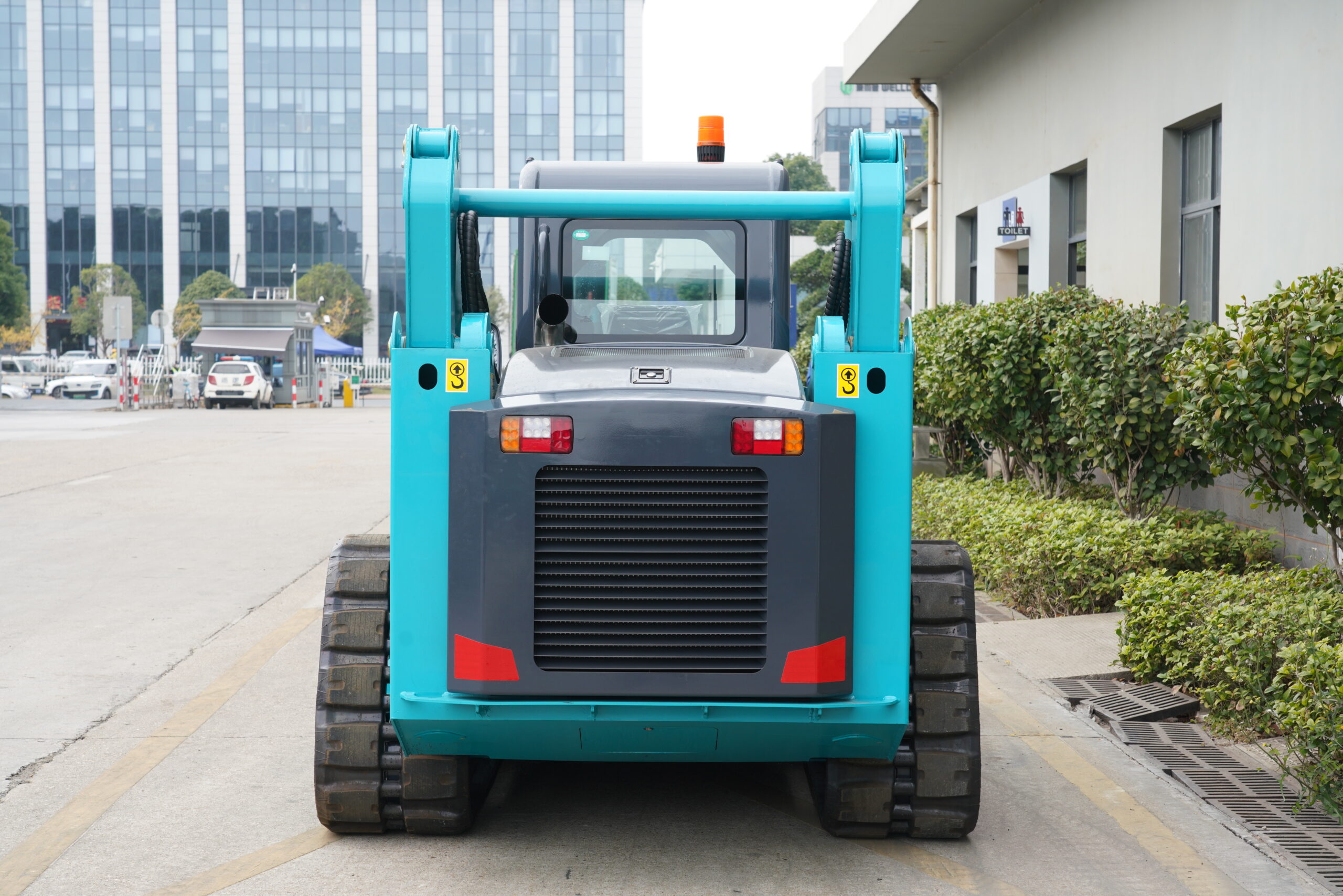

Daily maintenance is very easy since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.

When it comes to comfort, the SWTL 4538 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility.

Last but not least, safety is not at rest thanks to the ROPS/FOPS cab coupled with the excellent visibility and great stability of the machine.

Discover all the other advantages of the Sunward SWTL 4528.

Operating weight 4 400
Length without bucket 2 969mm
Length with standard bucket 3 750mm
Width without bucket 1 950 mm
Height to top of ROPS 2 071 mm
Ground clearance 228 mm
Turning radius from center (standard bucket) 2 253 mm
Coming Soon
Rated operating capacity 1 200 kg
Tipping Load 3 430 kg
Bucket breakout force (standard bucket) 3 385kg
Boom breakout force 2 600 kg
Travel speed 13 km/h

Comming Soon

Comming Soon

Comming Soon

Rated operating capacity

1 200 kg

Tipping load

3 430 kg

Rated power output

55.4 kW

Operating weight4

4 400 kg

Lift height

2 467 mm

Breakout force (bucket)

3 385 kg
