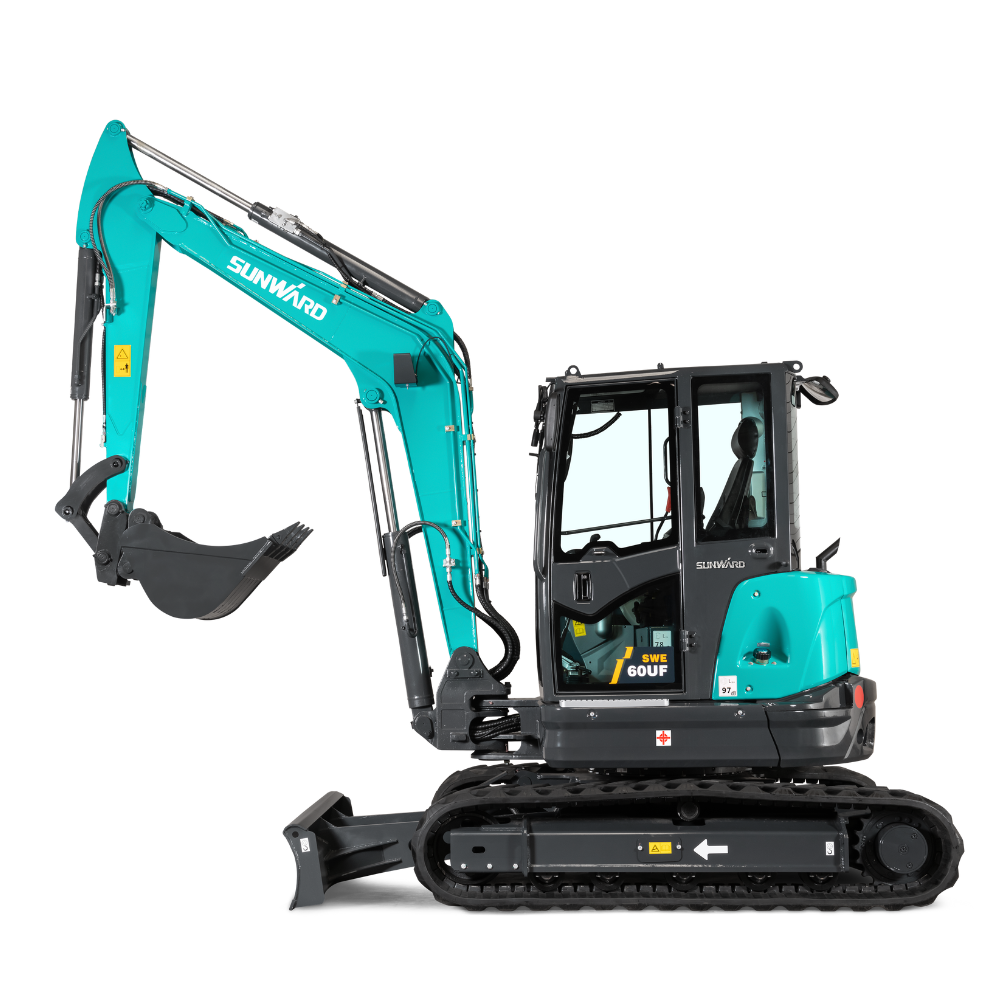

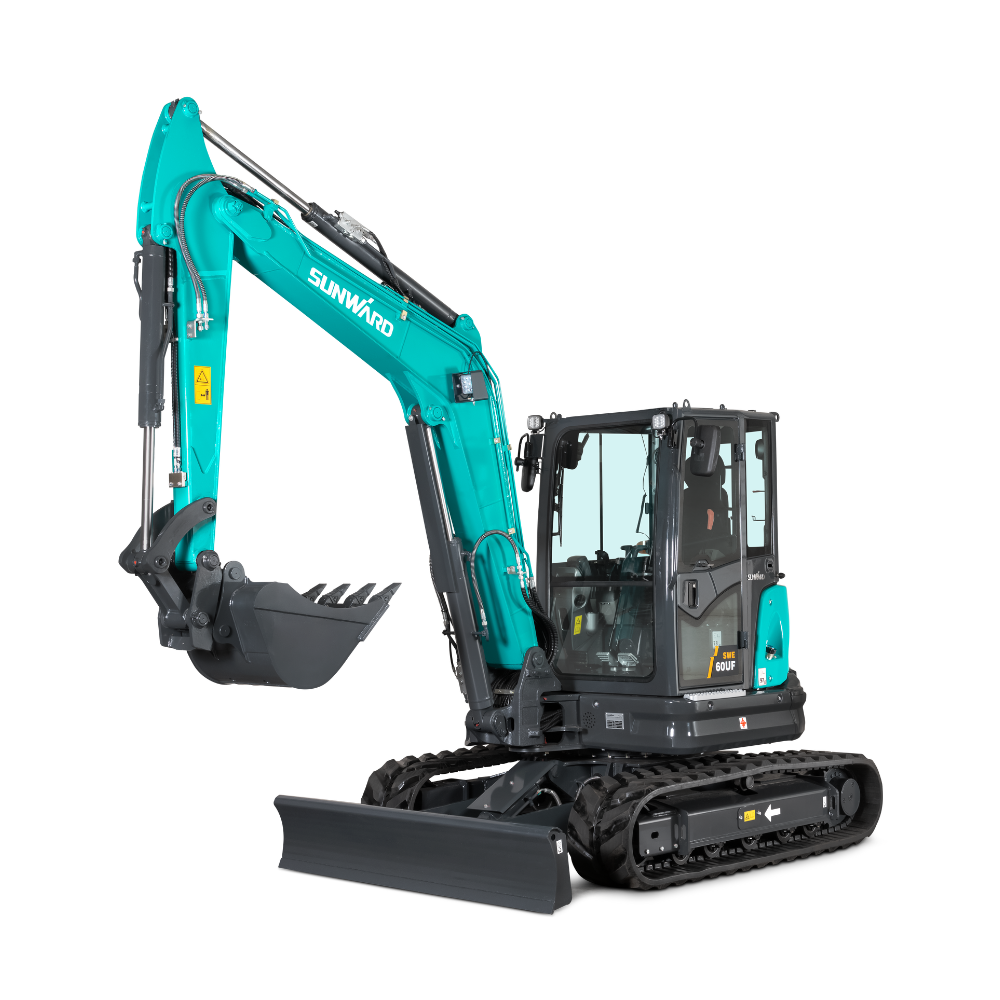

SWE 60UF

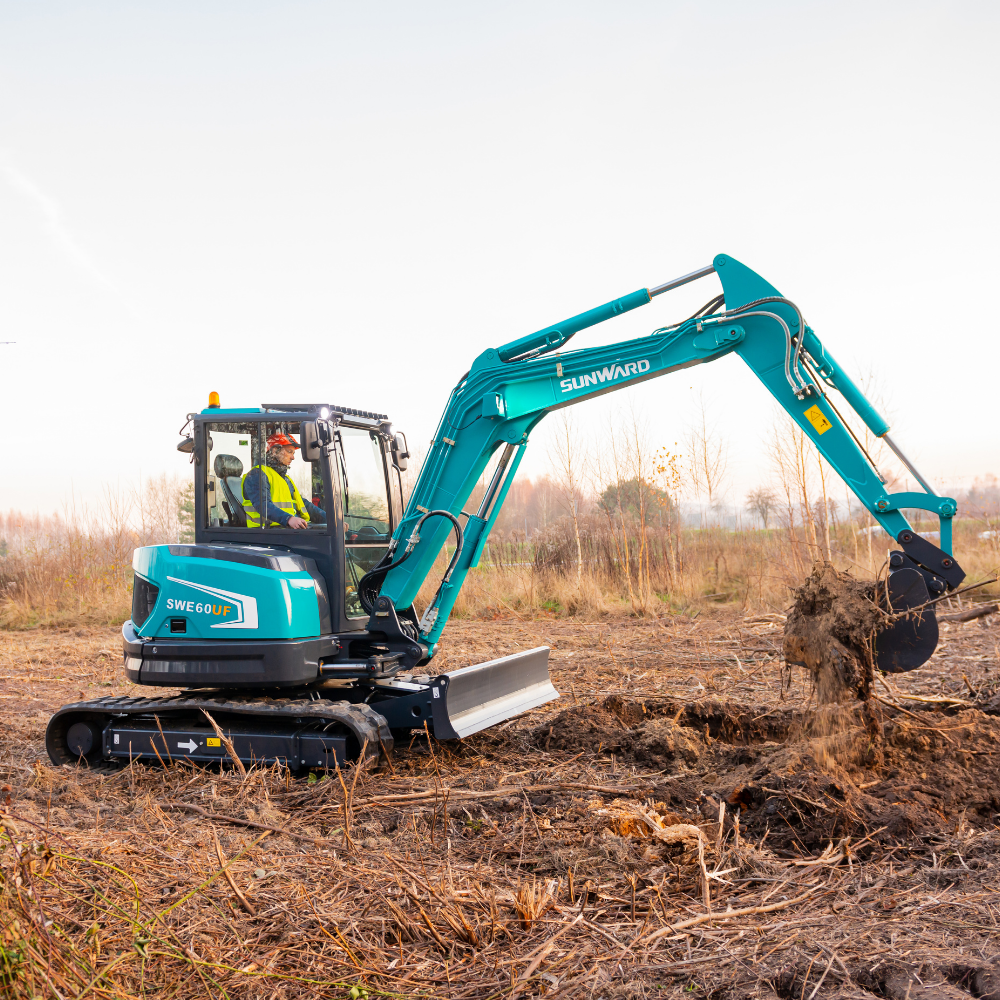

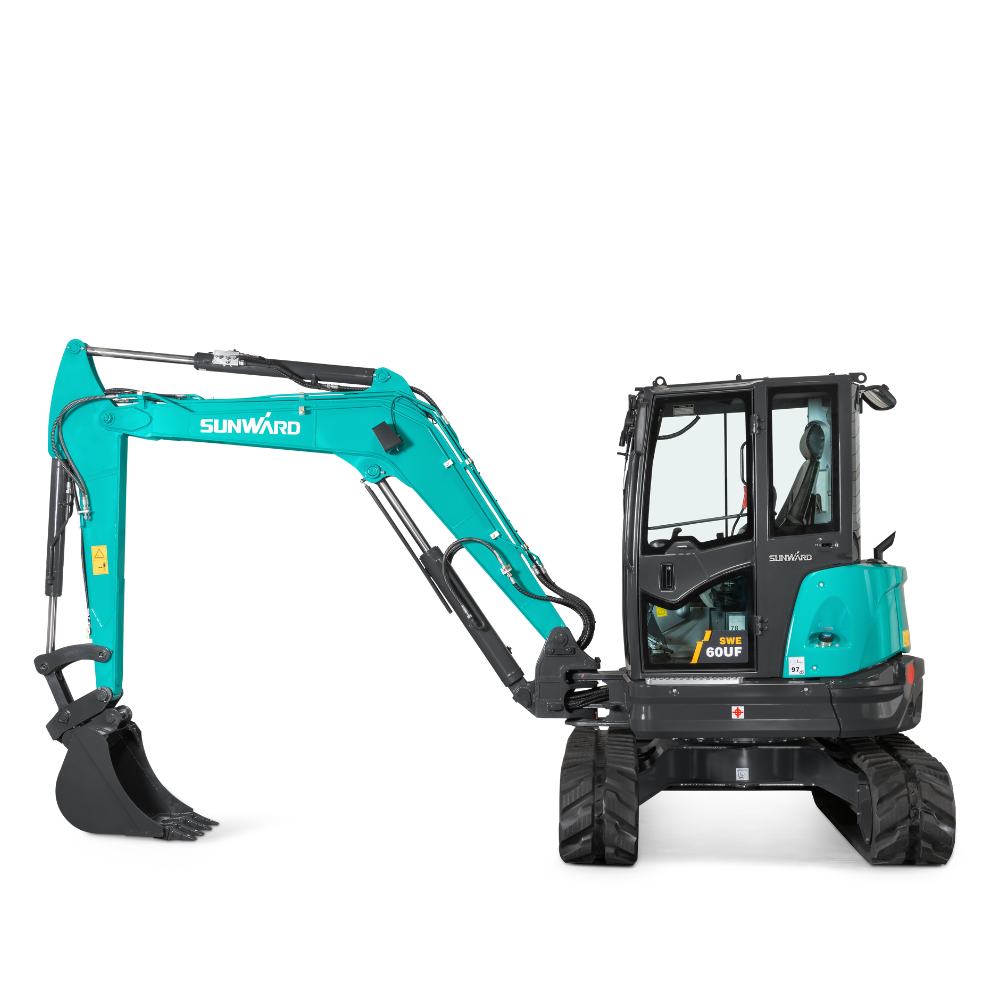

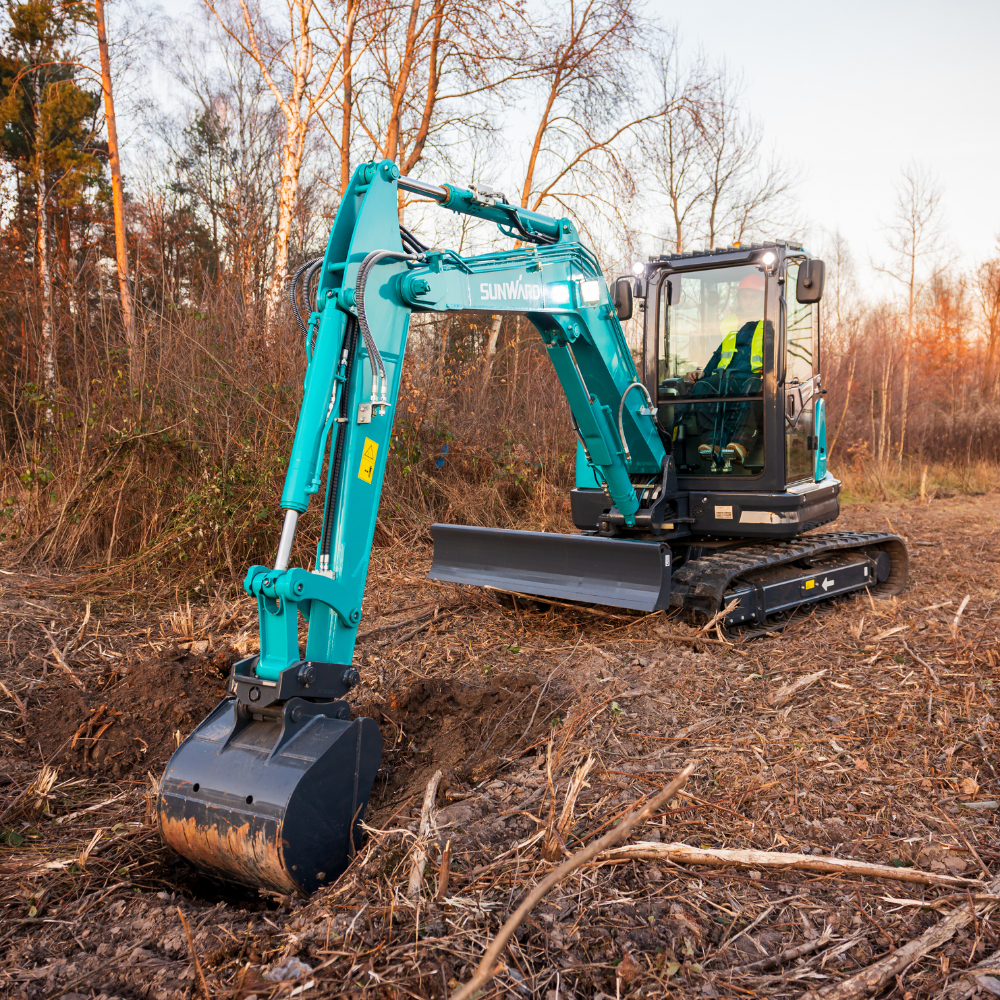

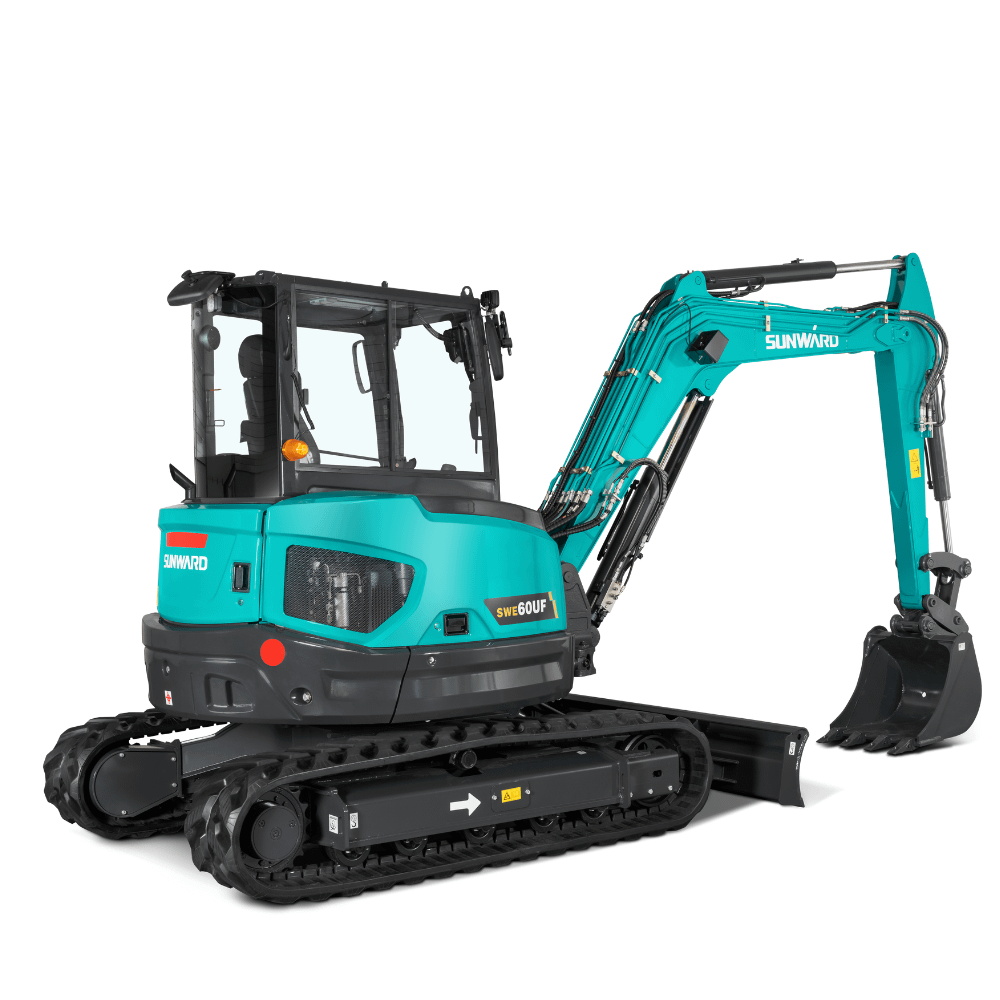

The Sunward SWE 60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. Combining both power and precision, the SWE 60UF offers also a comfortable and safe cab. Last but not least, its exceptional digging reach performance means no worksite is off-limits.

Emission rating: EU Stage V
Operating weight 5 700 – 5 770 kg
Power output 36.5 kW
Max. digging depth 3 710 mm
Width 1 980 mm



SUNWARD SWE 60UF

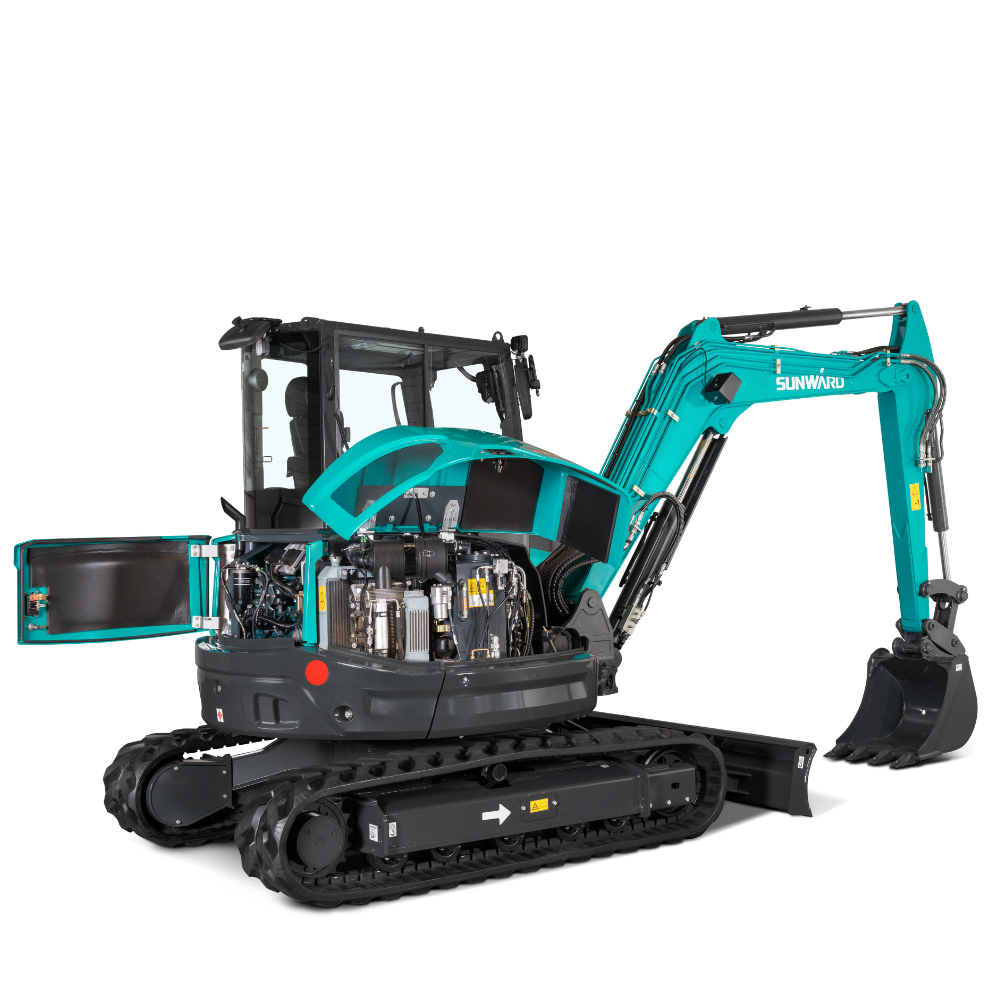

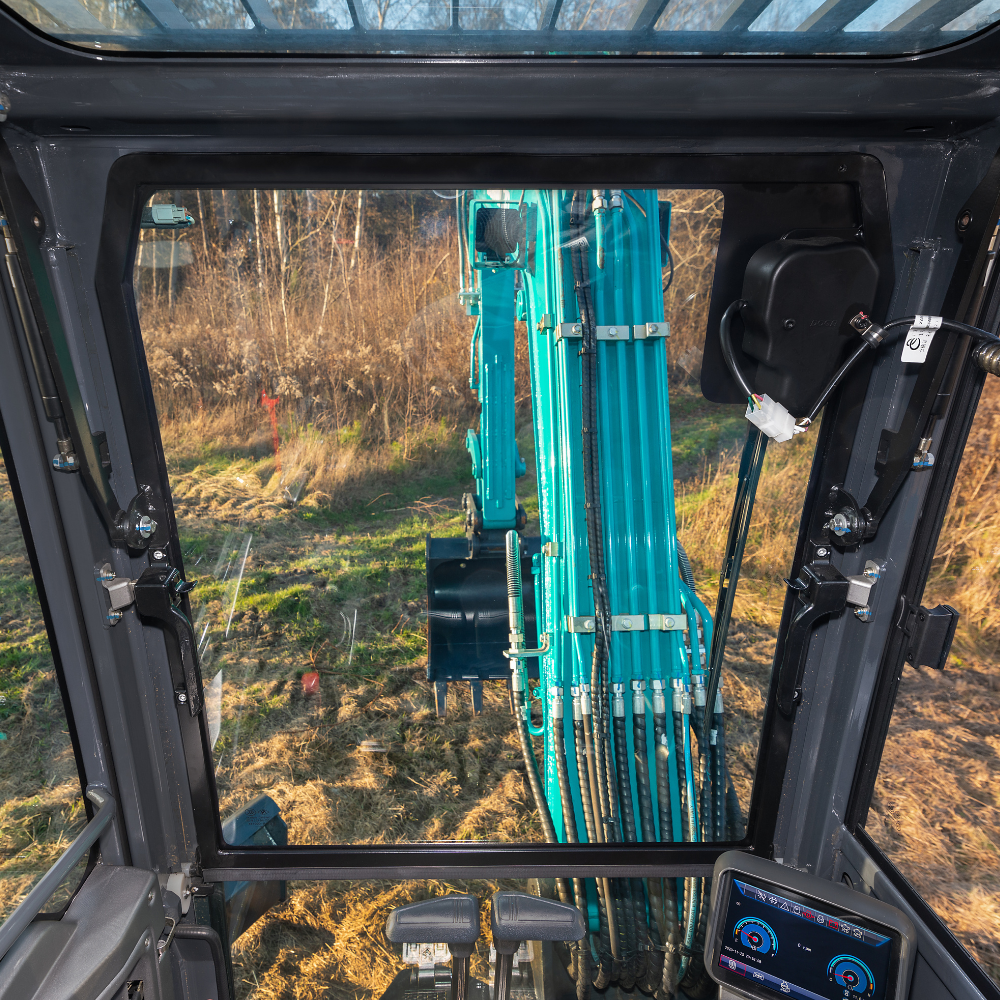

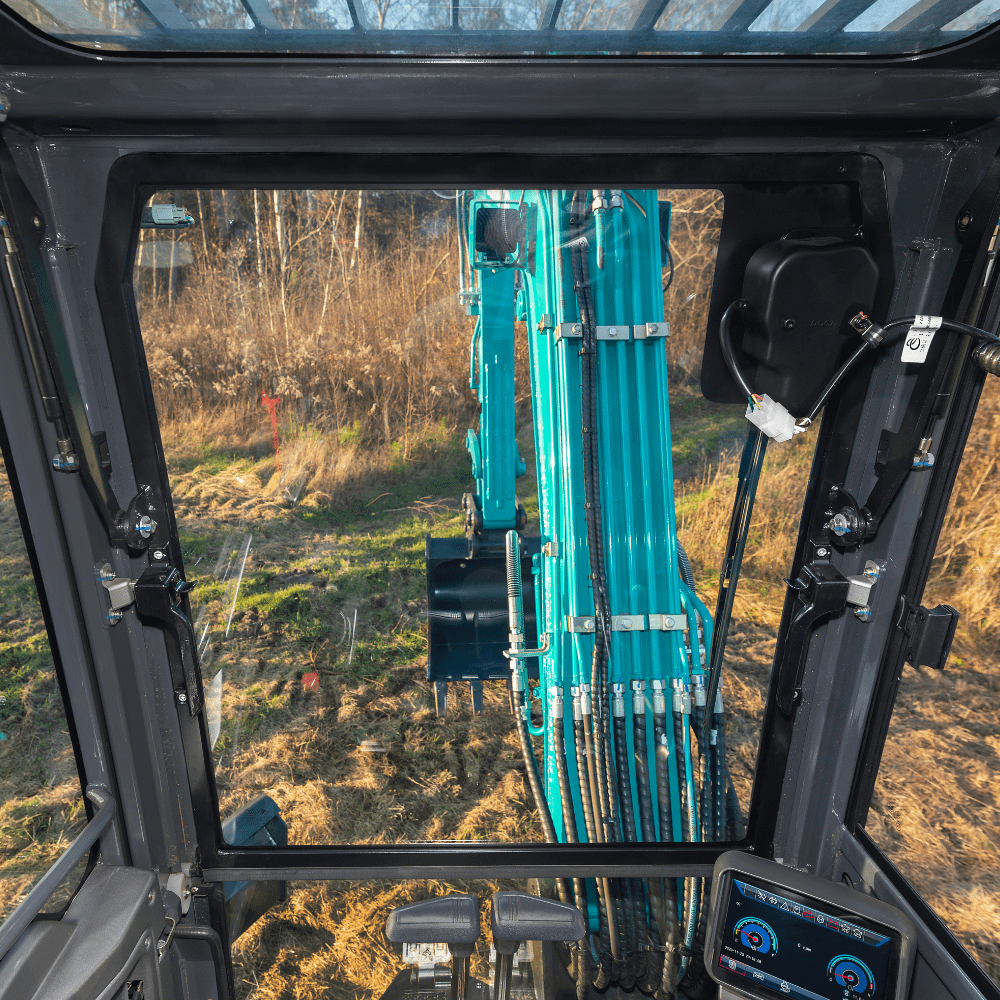

The Sunward SWE 60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. It combines the power of the Kubota V2607-DI-T engine, delivering 36.5 kW, with incredible precision thanks to the dual proportional joysticks and the perfectly fitted hydraulic flow. Its exceptional digging reach performance means no worksite is off-limits. Of course, because we know that safety and comfort should go hand-in-hand, the SWE 60UF keeps you safe and provides every comfort in all working conditions. Last but not least, in the Sunward tradition to always offer the best value for money, the SWE 60UF is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.
Discover all the other advantages of the Sunward SWE 60UF.

Operating weight 5 700 – 5 770 kg
Standard bucket Capacity 0.18 m³
Shipping length 5 500 mm
Shipping width 1 980 mm
Height over cabin 2 550 mm

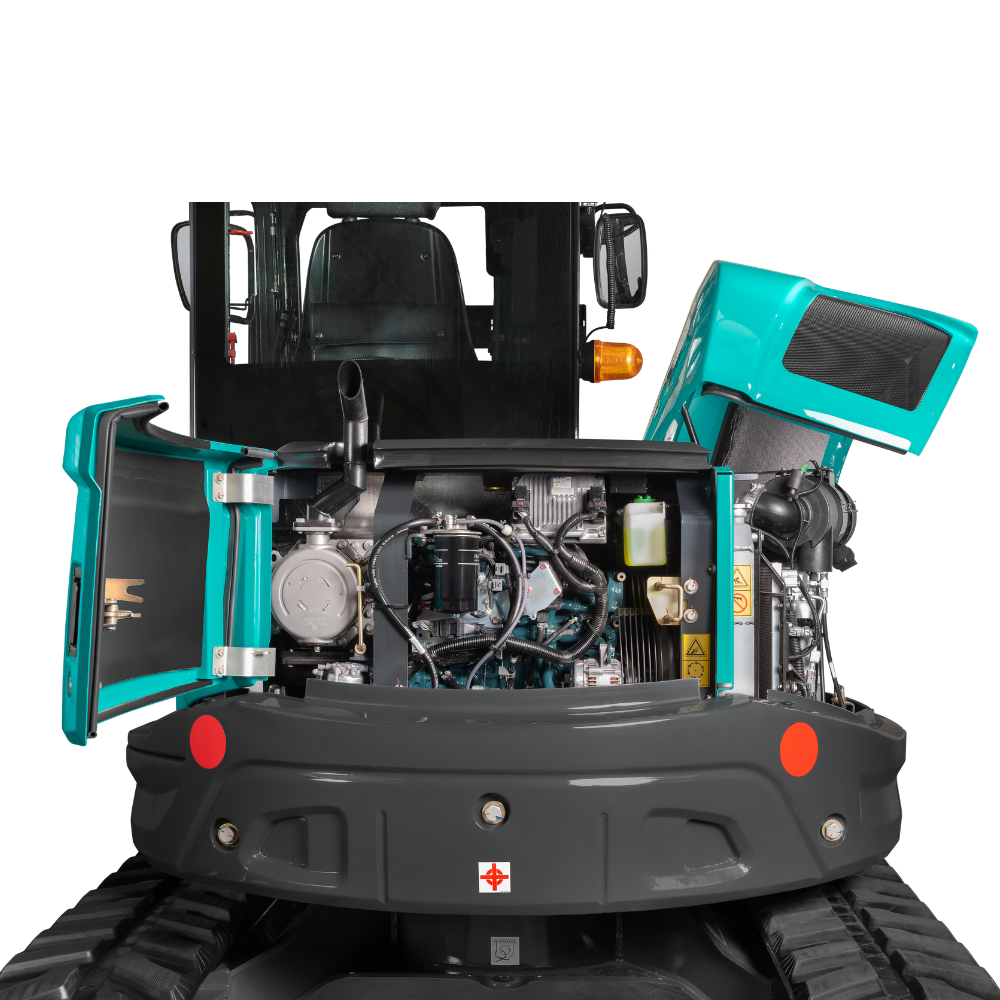

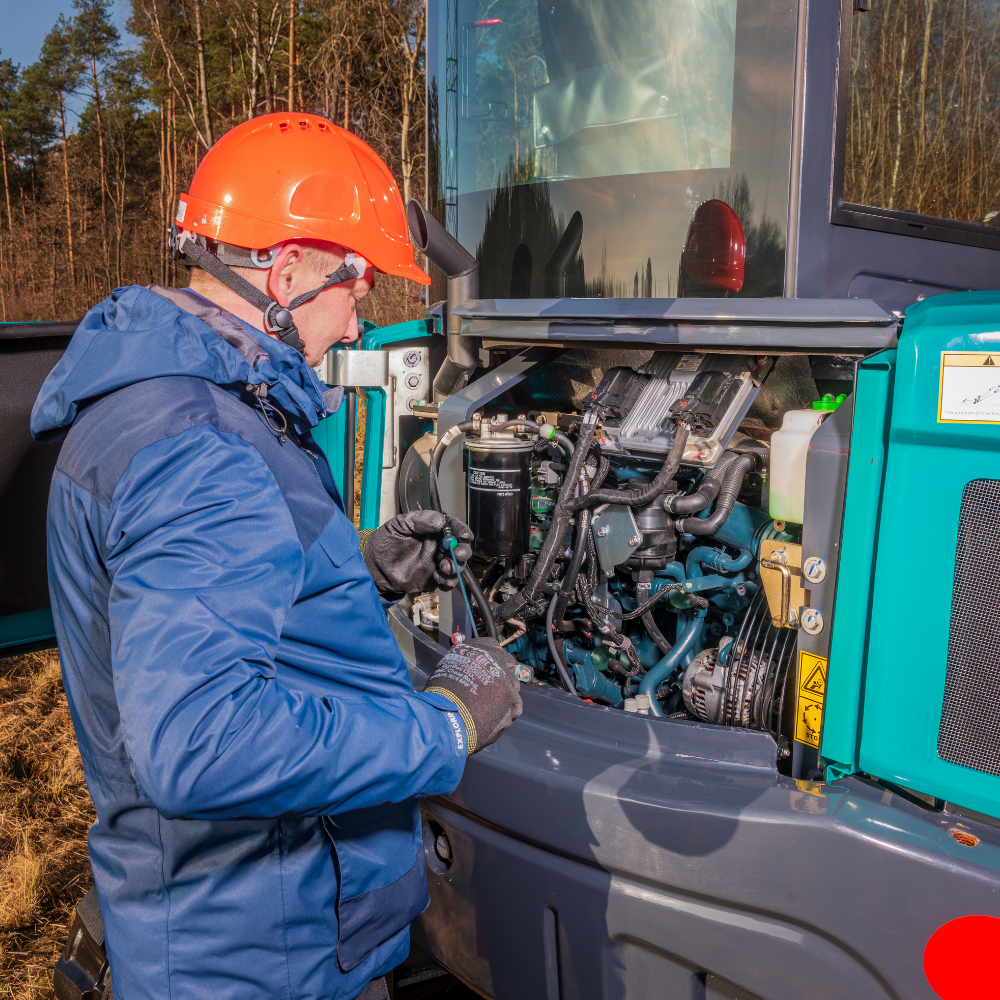

Model Kubota V2607-DI-T
Emission rating EU Stage V
Displacement 2.615 L
Rated power output 36.5 kW

Type 2 variable piston pumps + 1 gear pump
Displacement 2 x 59 L/min + 42 L/min
Hydraulic pressure 2 x 24.5 Mpa + 21 Mpa

Max. digging depth 3 710 mm
Max. digging reach 6 235 mm
Max. bucket digging force 46.8 kN
Max. arm digging force 31.1 kN

Comming Soon

Comming Soon

Comming Soon

Emission rating

EU Stage V
Operating weight

1 880 kg
Power output

13.4 kW
Max. digging depth

2 206 mm
Width

990-1 360mm

recently added products

  • SL 16W

    View Cart

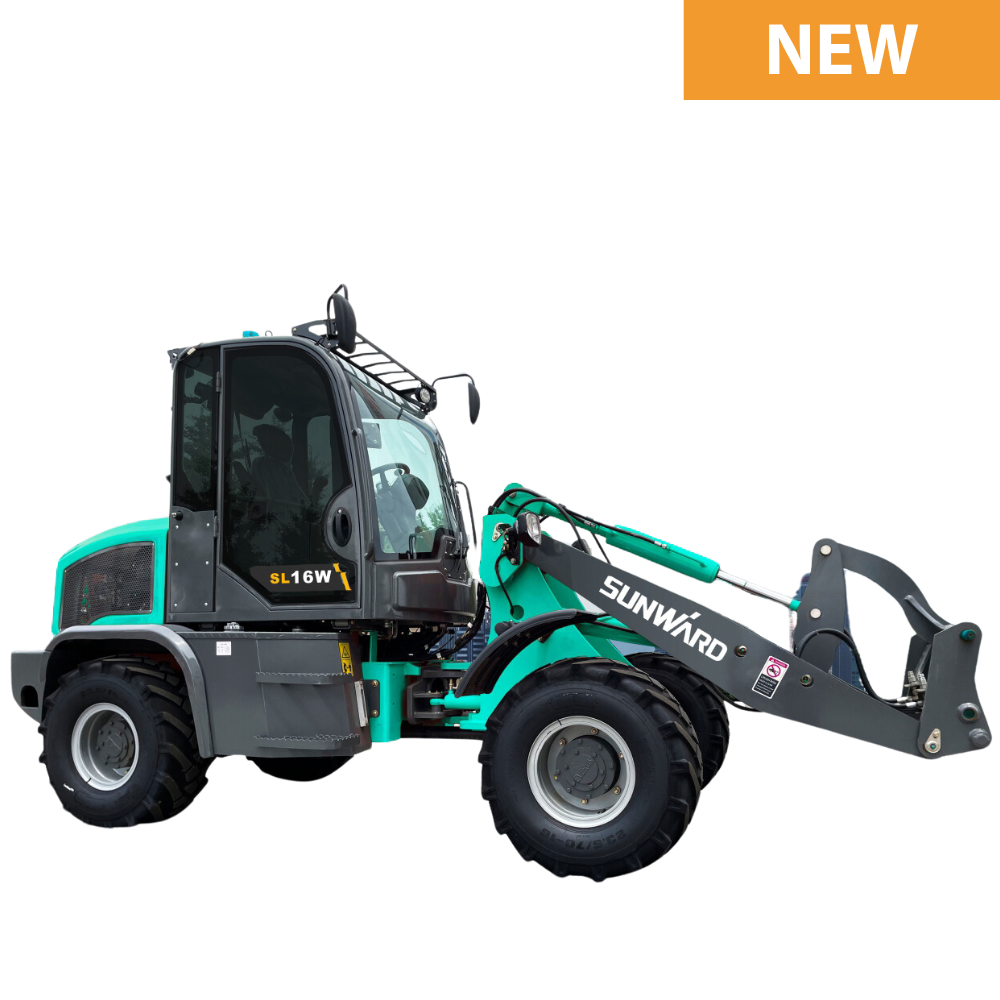

    SL 16W

    Rated load

    1 600 kg
    Operating weight

    4 400 kg
    Power output

    45 kW
    Bucket capacity

    0.73 m³

  • SL 12W

    View Cart

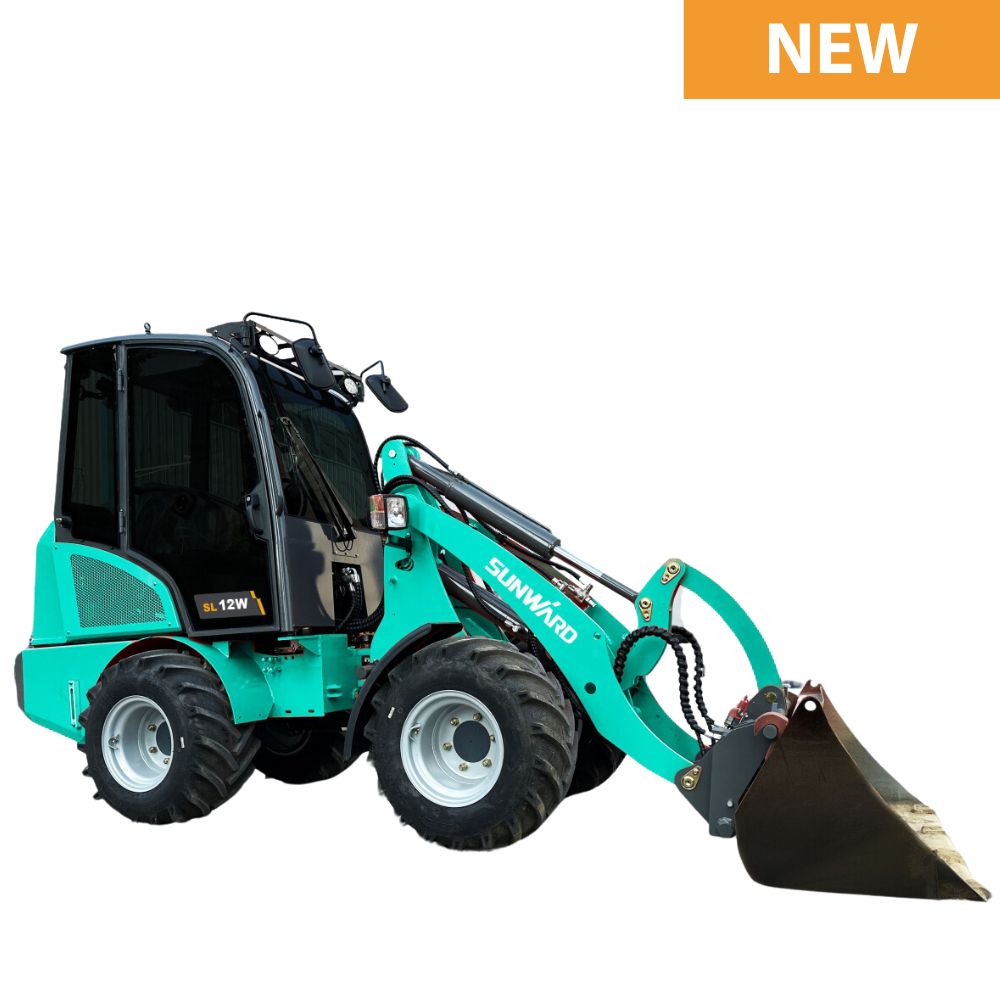

    SL 12W
