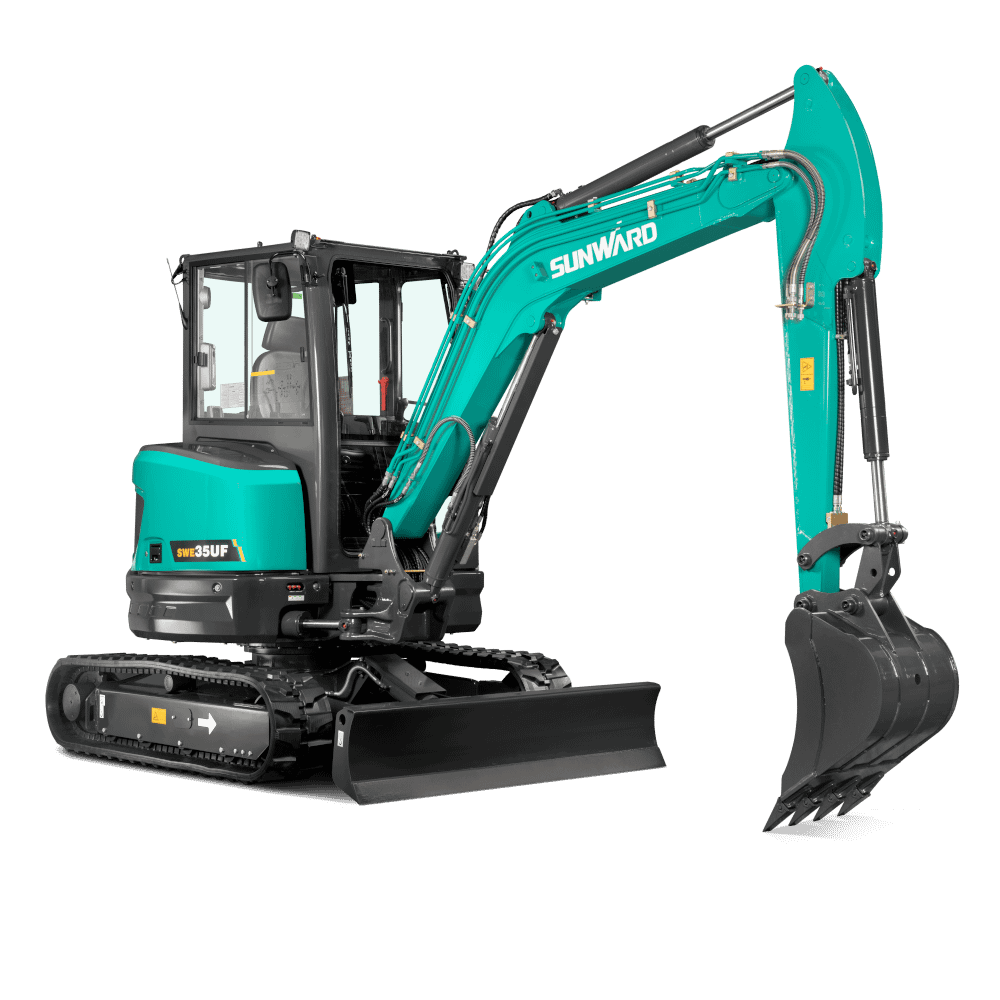

SWE 35UF

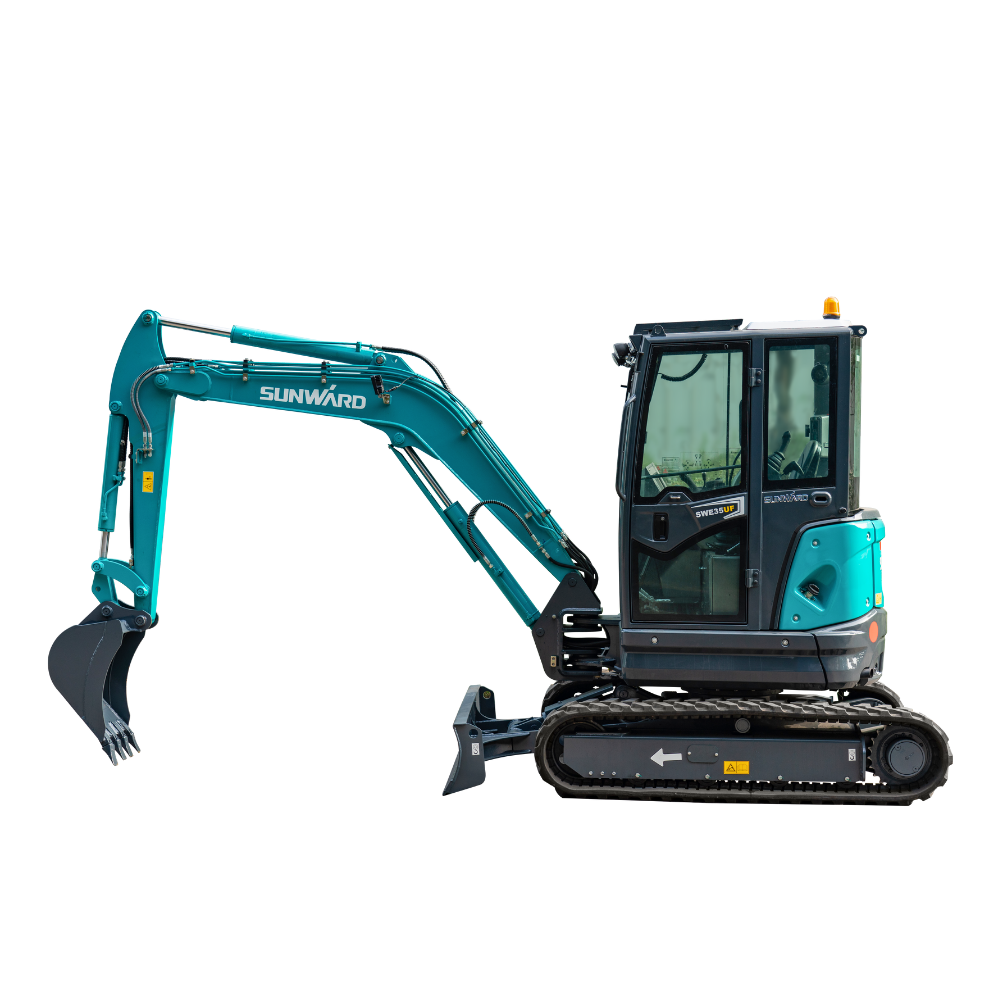

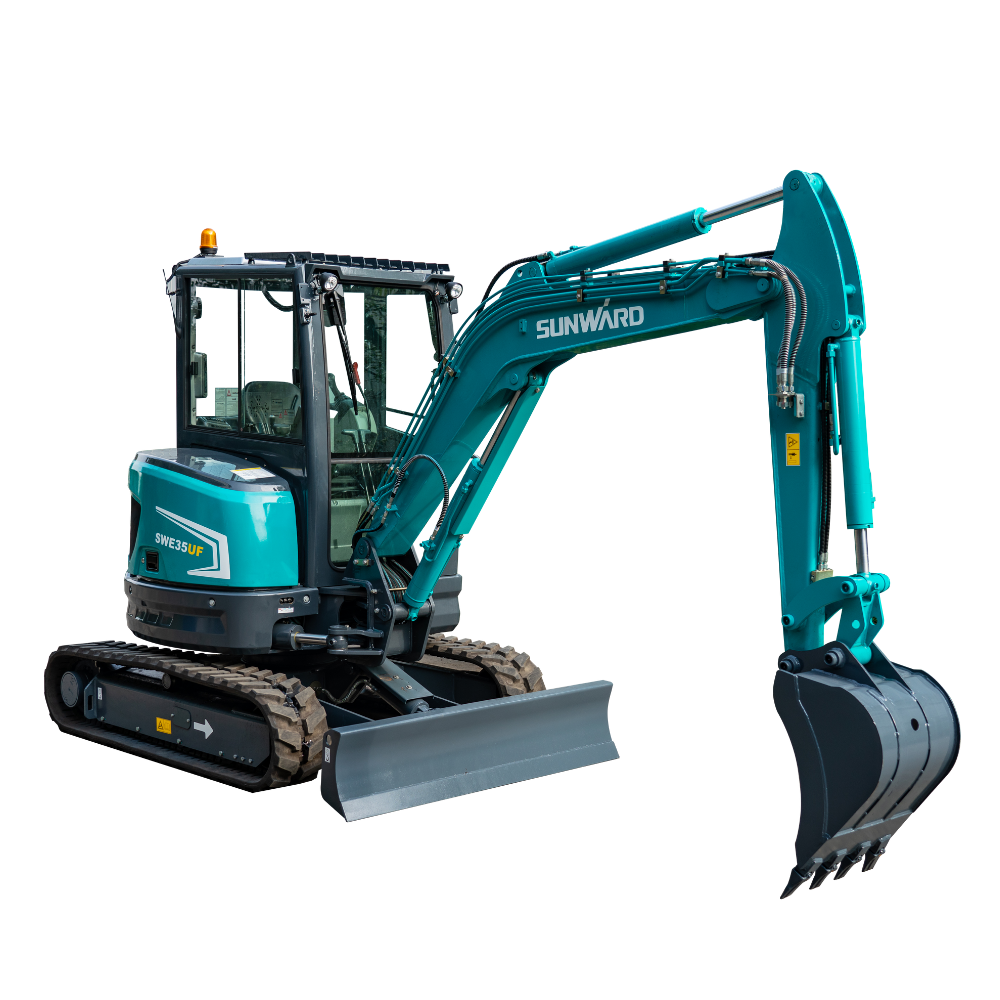

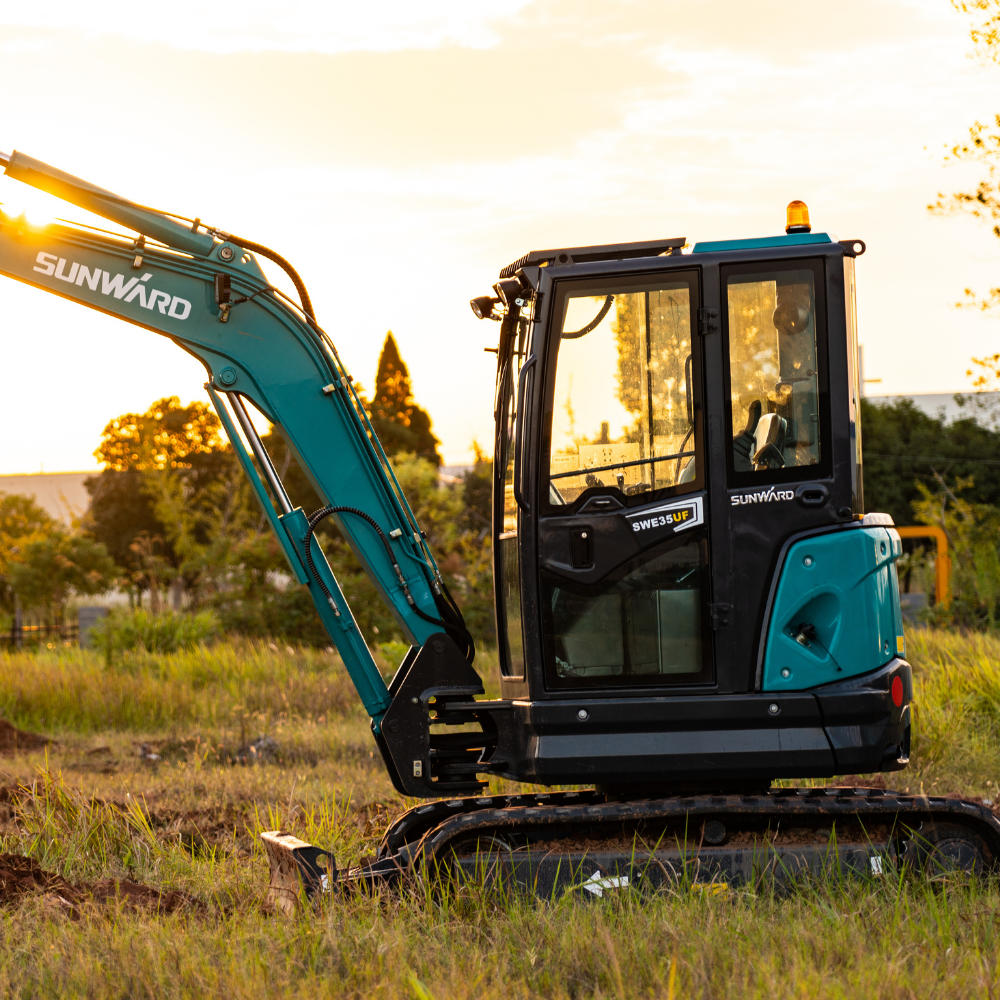

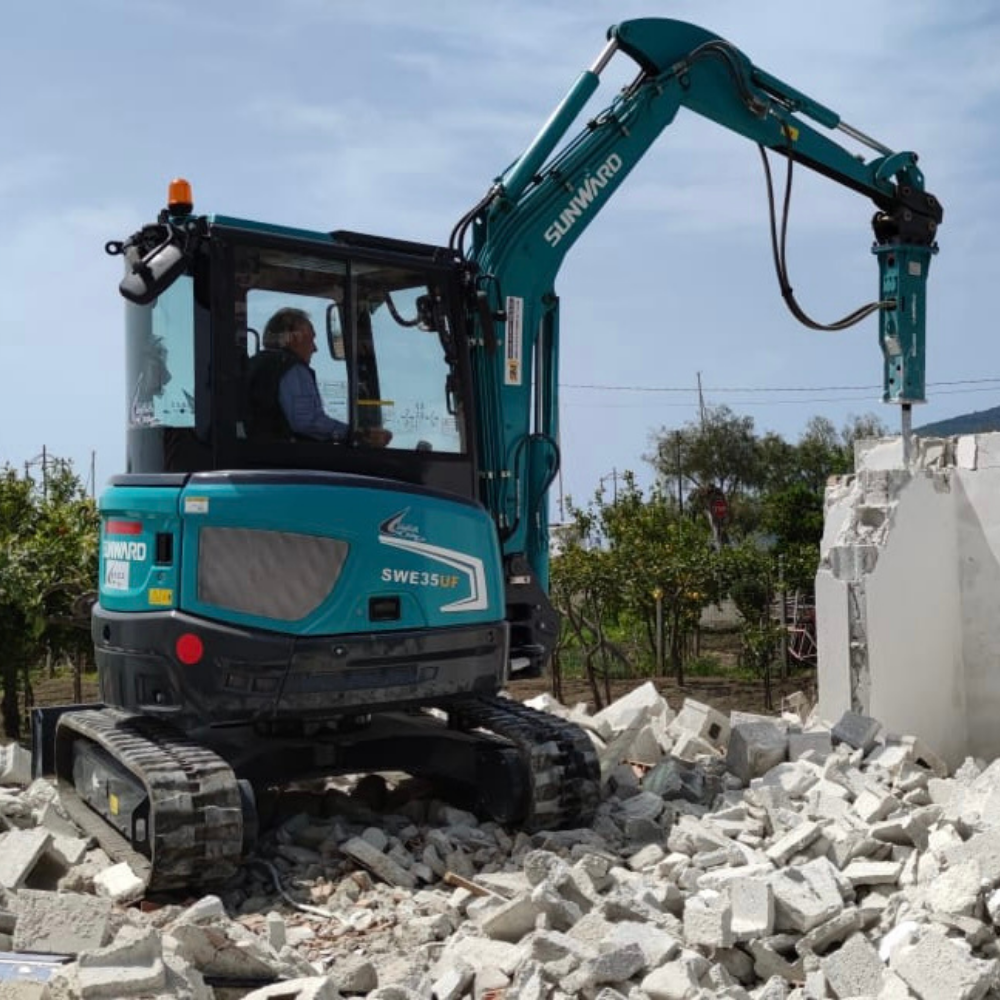

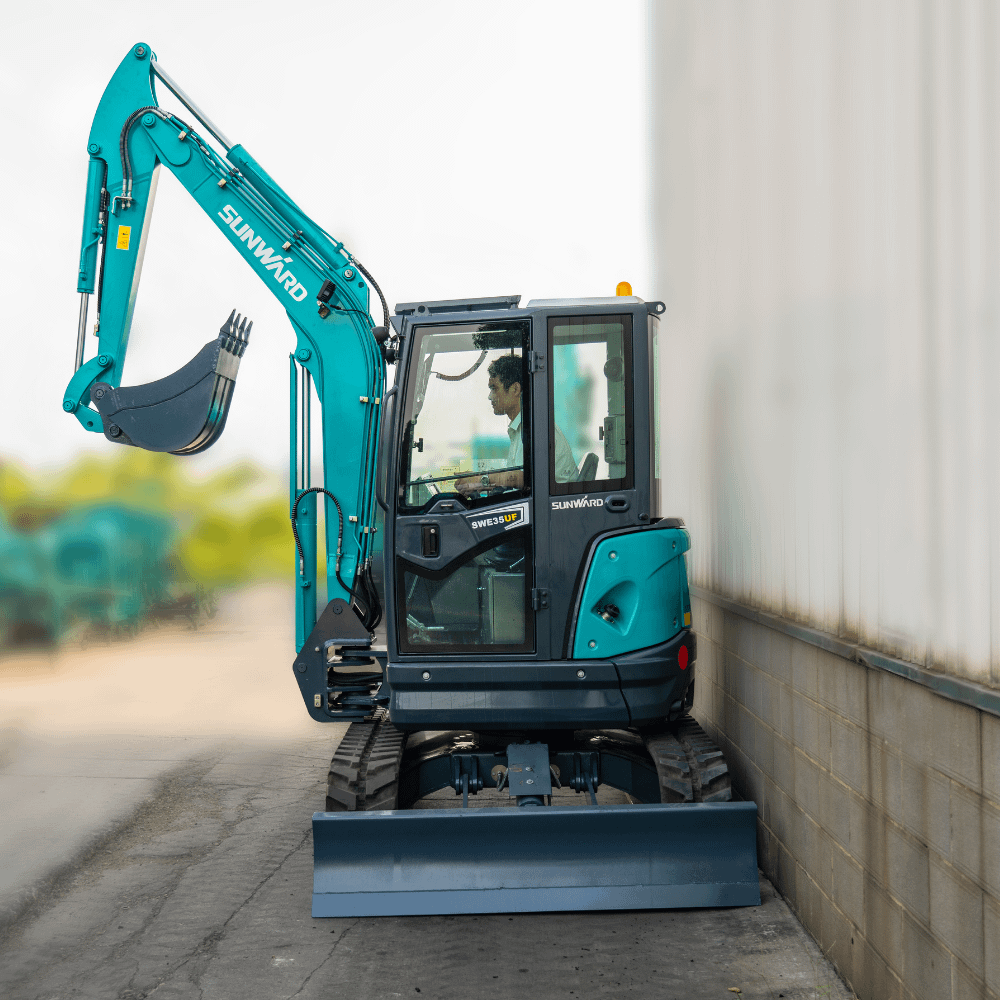

The Sunward SWE 35UF mini excavator is the largest mini excavator in the Sunward range. The zero-tail SWE35UF can handle bigger projects than its smaller companions, while also maintaining good performance, maneuverability, and speed on the job. With a ROPS / FOPS cab outfitted with A/C and heat, this machine can keep going no matter what.

Emission rating: EU Stage V
Operating weight 3 850 ‒ 3 750 kg
Power output 18.2 kW
Max. digging depth 3 120 m
Width 1 700 mm



SUNWARD SWE 35UF

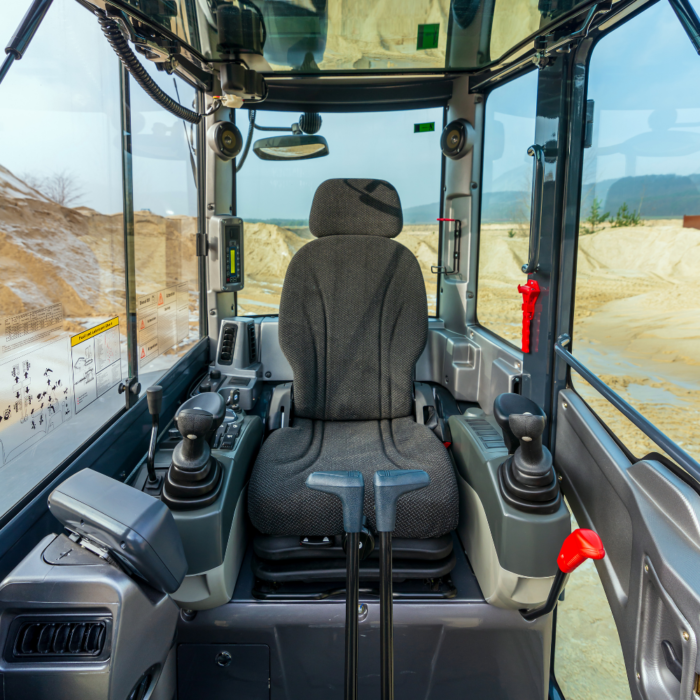

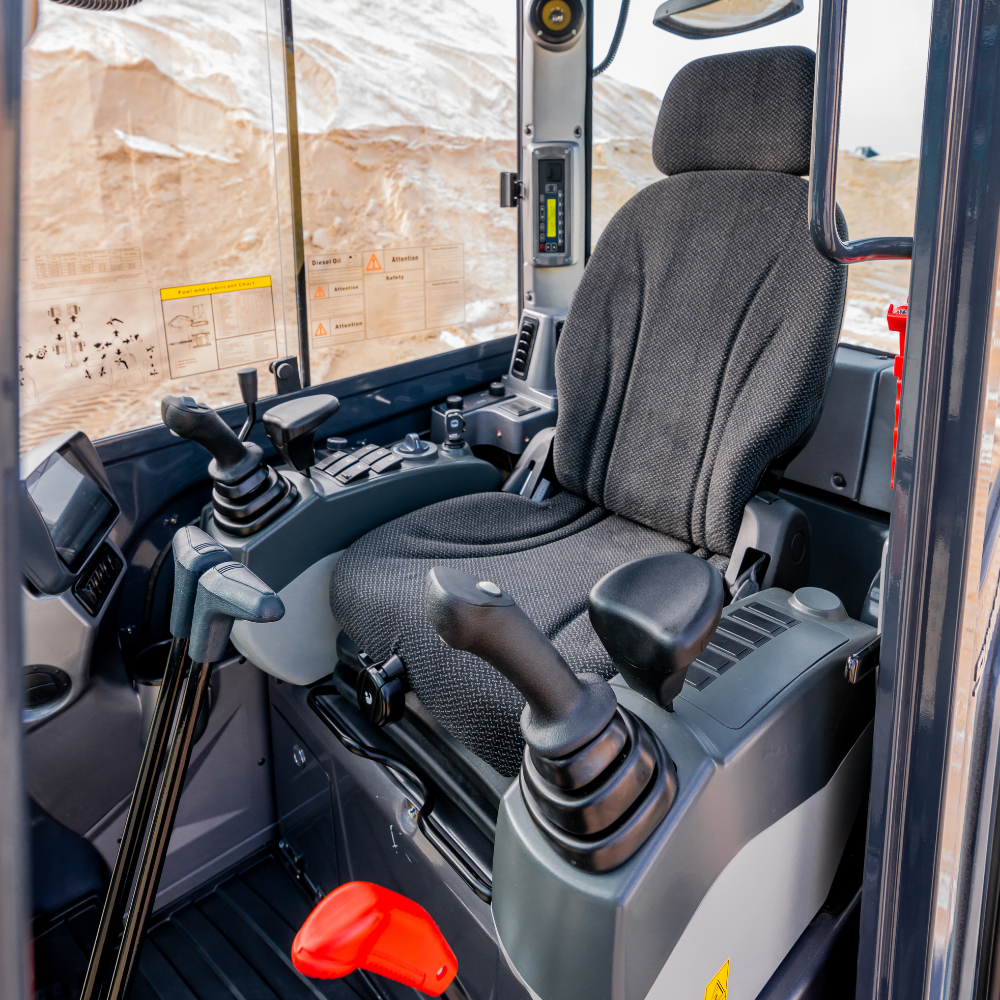

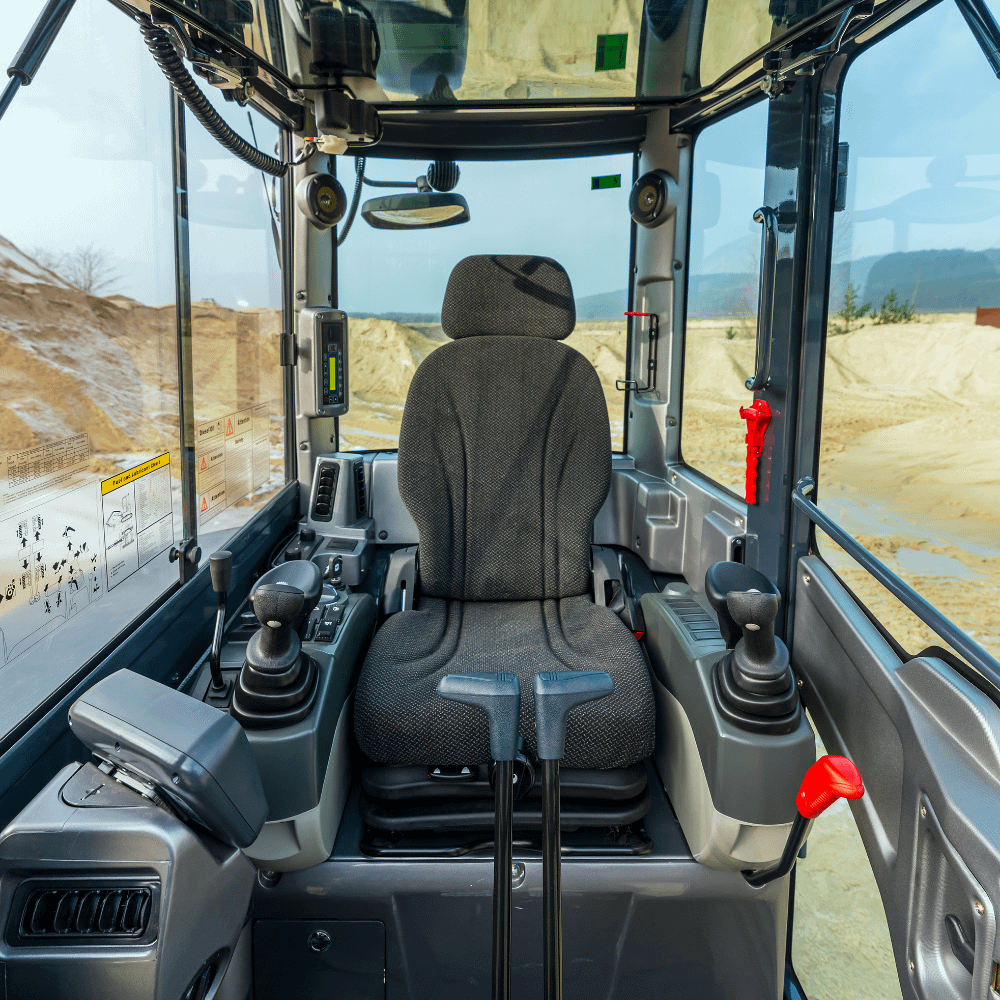

The Sunward SWE 35UF mini excavator is the largest mini excavator in the Sunward range. The zero-tail SWE35UF can handle bigger projects than its smaller companions, while also maintaining good performance, maneuverability, and speed on the job. With a ROPS / FOPS cab outfitted with A/C and heat, this machine can keep going no matter what. In the Sunward tradition to always offer the best value for money, the SWE 35UF is no exception since it offers many features and up to 5 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE 35UF keeps you safe and provides every comfort in all working conditions.
Discover all the other advantages of the Sunward SWE 35UF.

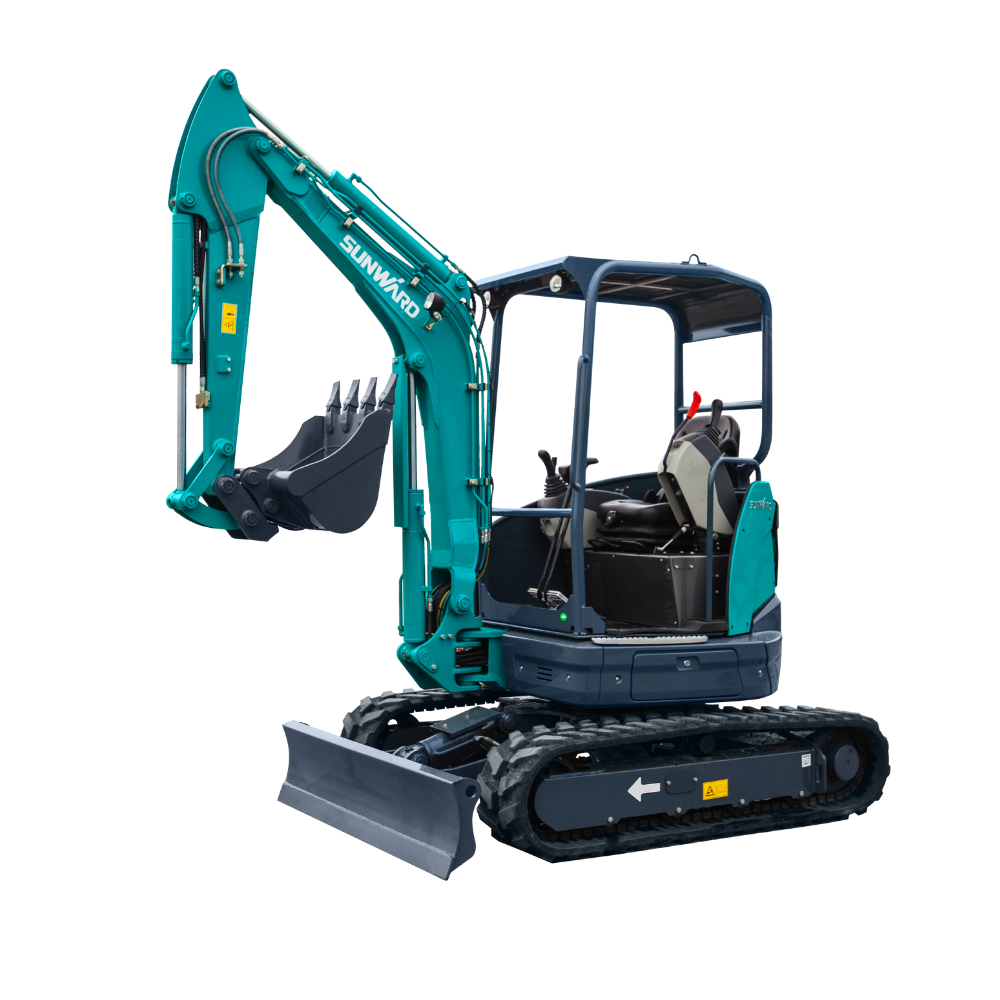

Type of cab Cab or Canopy

Operating weight 3 850 ‒ 3 750 kg
Standard bucket Capacity 0.11 m³
Shipping length 4 890 mm
Shipping width 1 700 mm
Height over cabin 2 555 mm

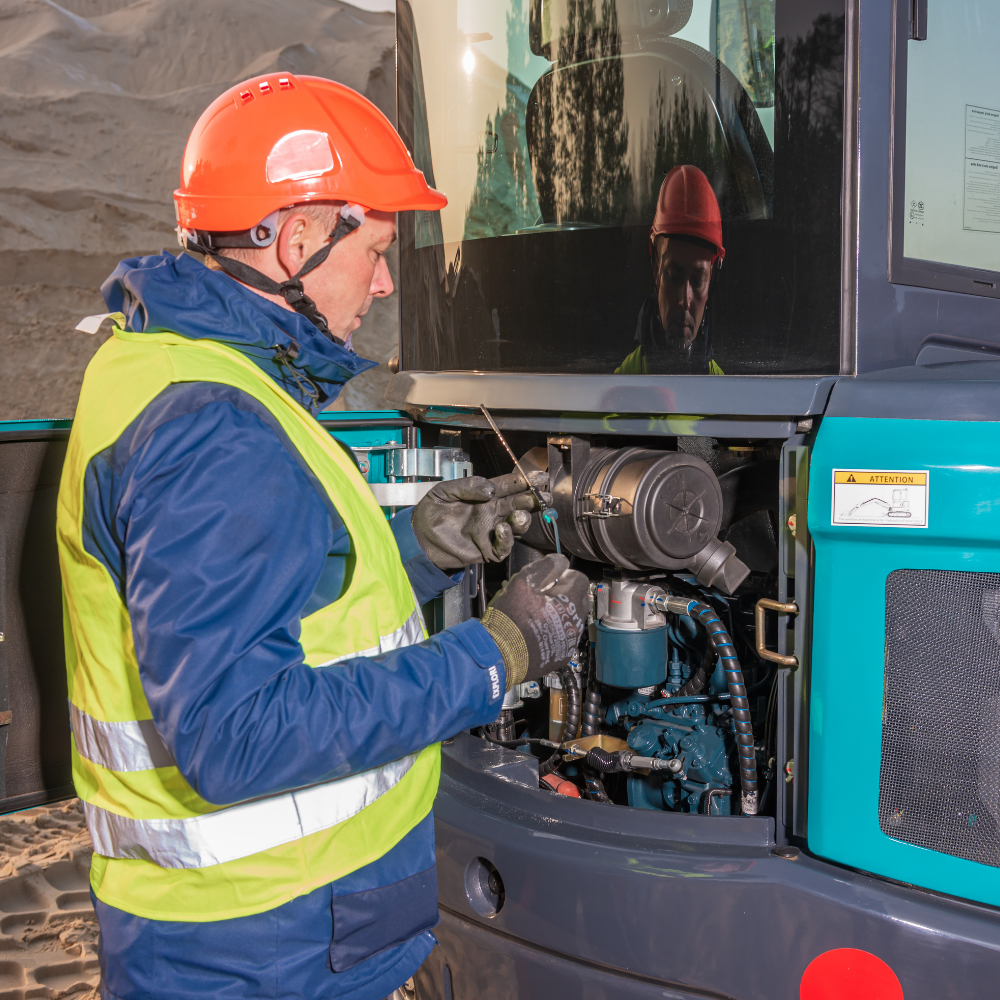

Model Kubota D1703-E4B-SWD-1
Emission rating EU Stage V
Displacement 1.647 L
Rated power output 18.2 kW

Type 1 variable piston pump
Displacement 88 L/min
Hydraulic pressure 24.5 Mpa

Max. digging depth 3 120 mm
Max. digging reach 5 390 mm
Max. bucket digging force 31.8 kN
Max. arm digging force 22.53 kN
