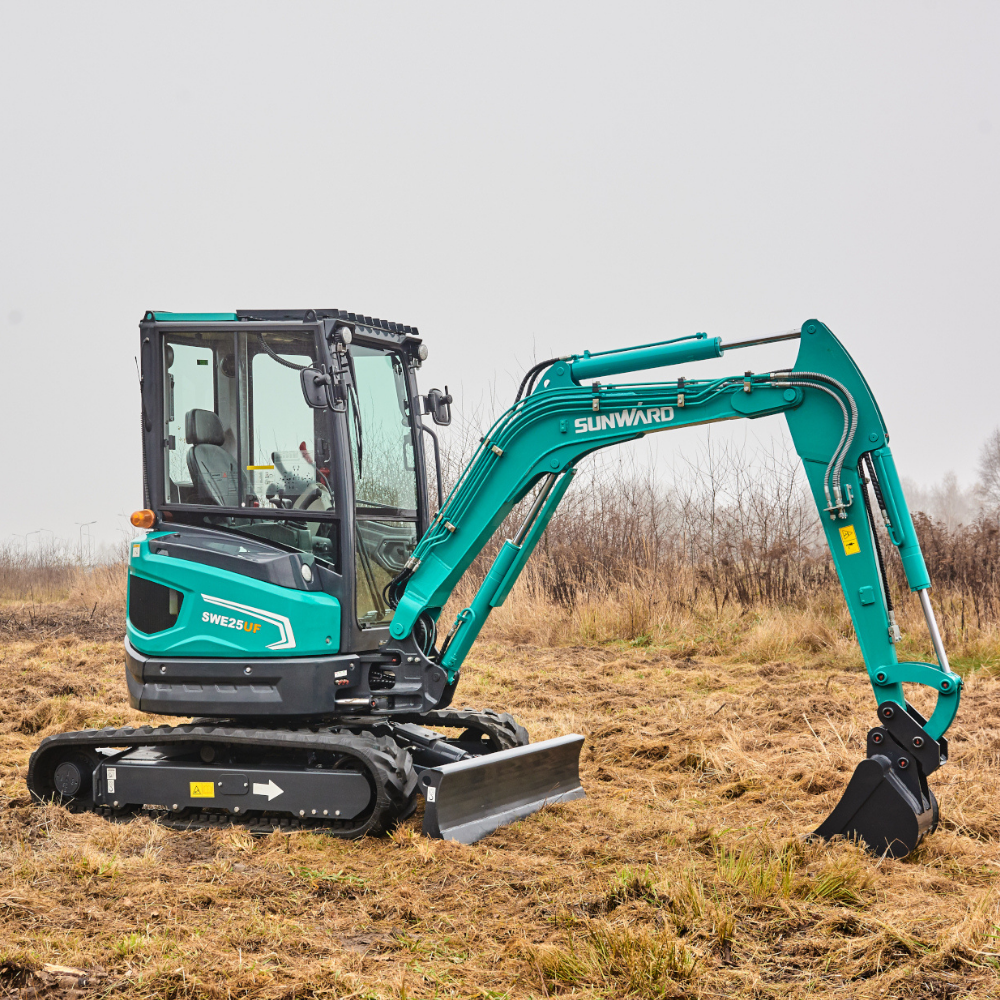

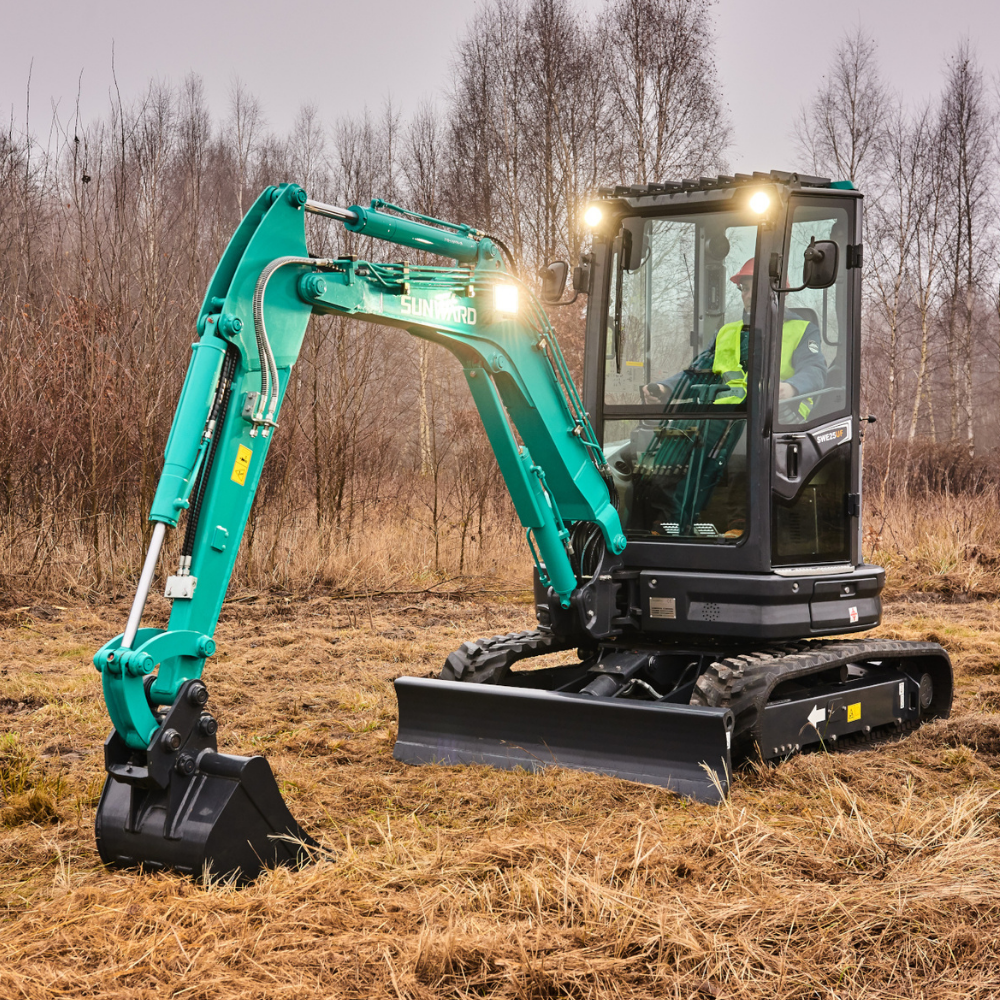

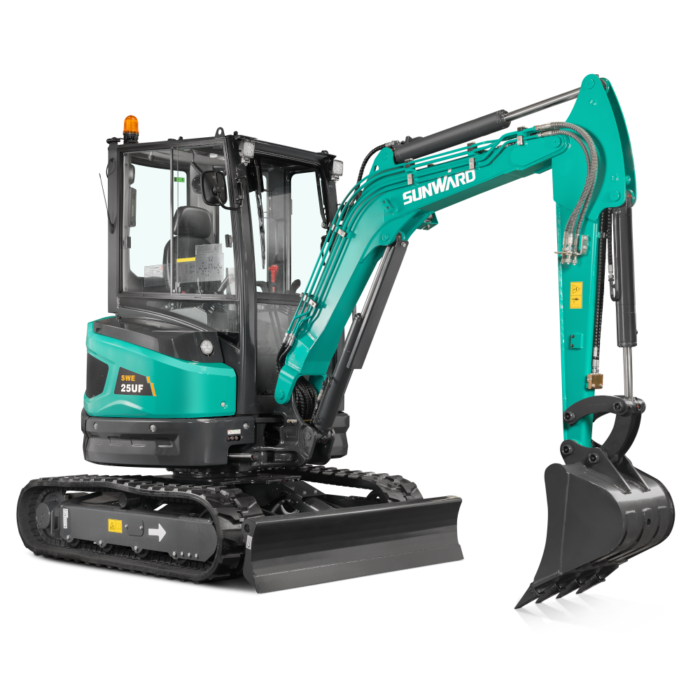

SWE 25UF

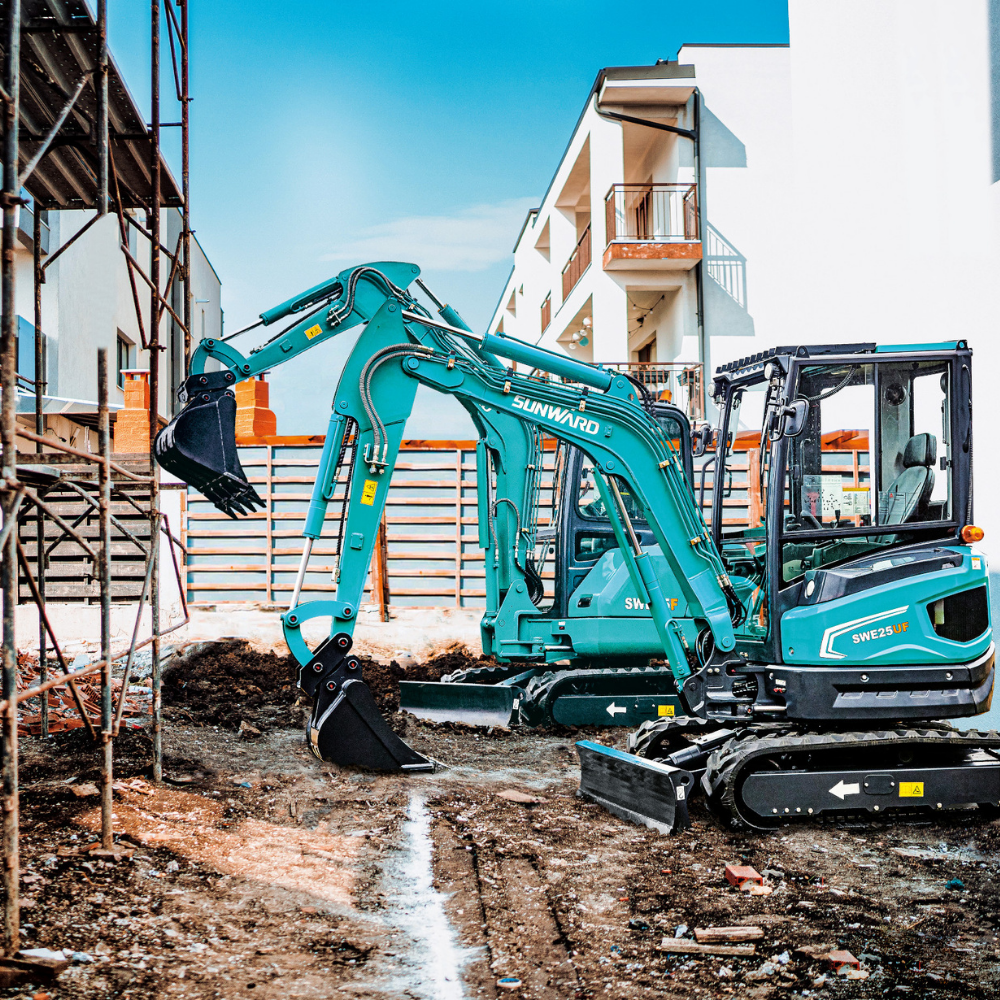

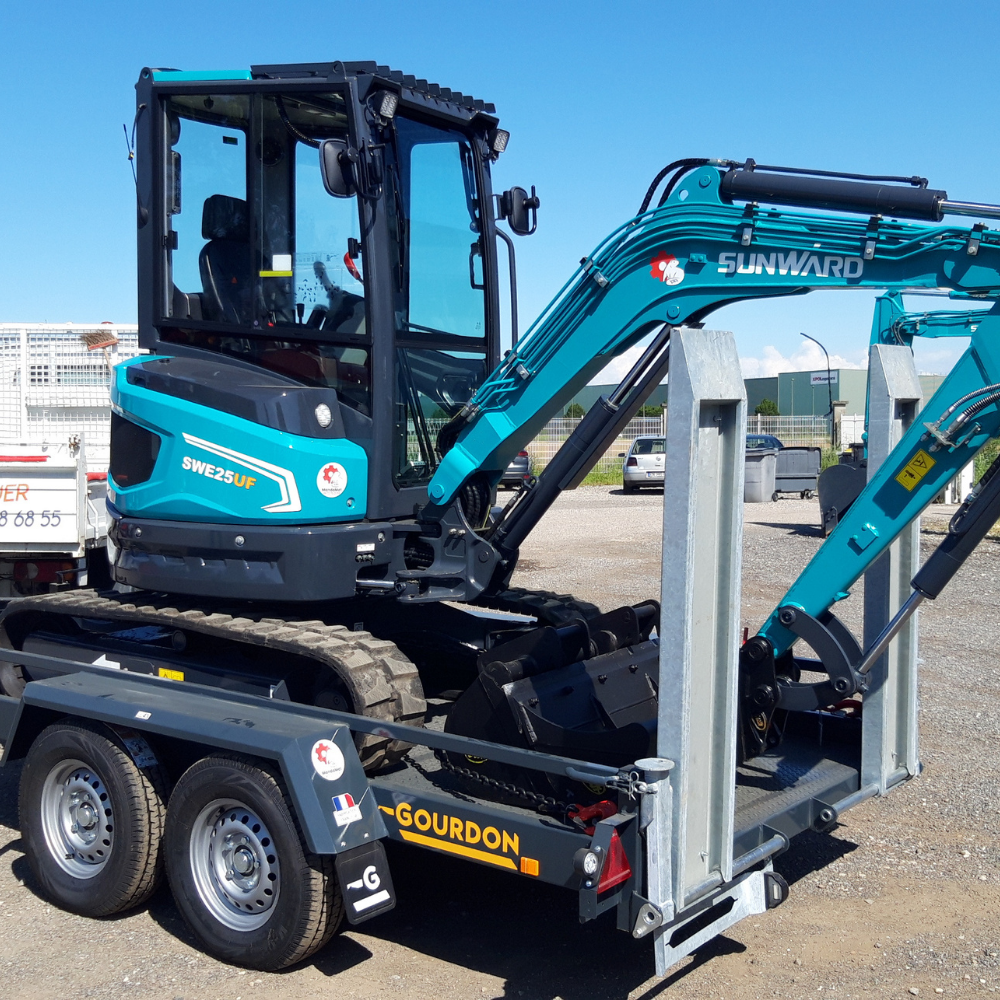

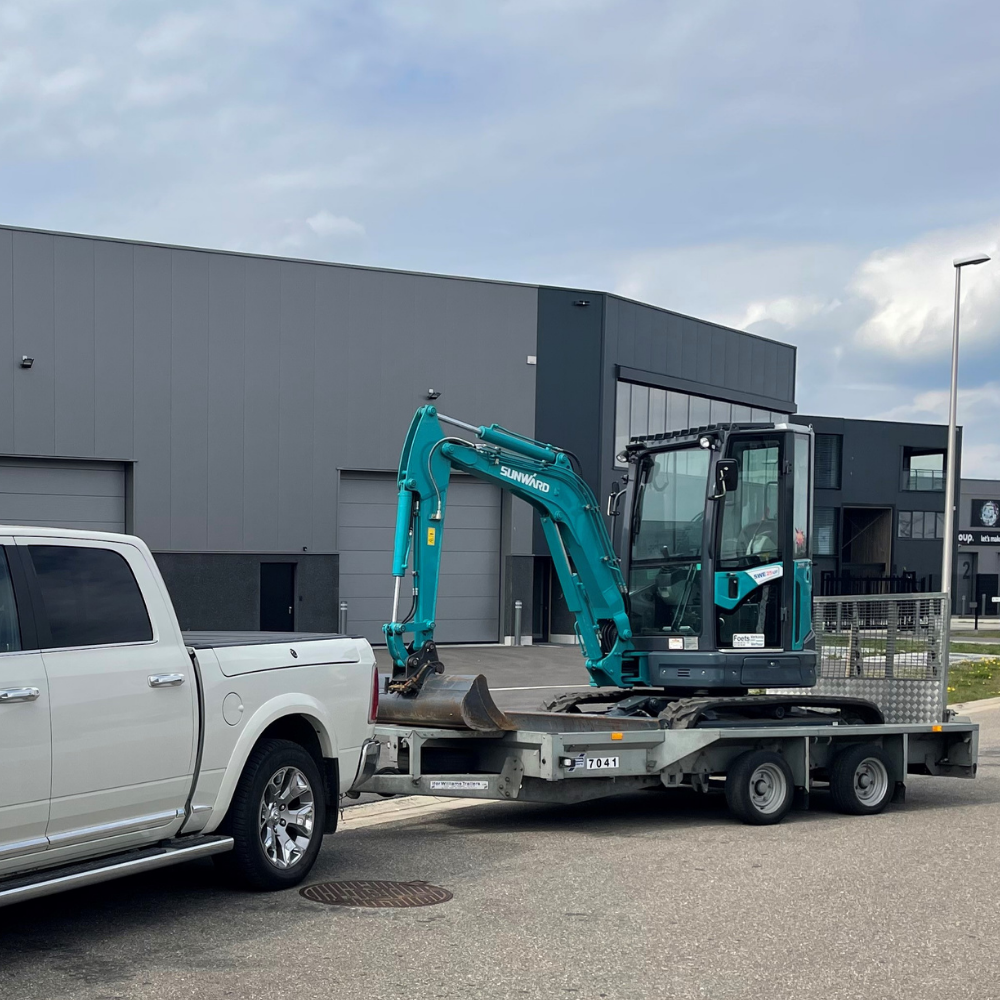

The Sunward SWE 25UF mini excavator is the zero-tail version of the SWE 25F mini excavators. As the SWE 25F, the SWE 25UF benefits from exceptionally good performance on the job. But its unique zero-tail compact design makes it the perfect option for tight jobsites where power is required. Its weight category makes it very easy to transport.

Emission rating: EU Stage V
Operating weight 2 550 – 2 650 kg
Power output 14.6 kW
Max. digging depth 2 840 mm
Width 1 500 mm



SUNWARD SWE 25UF

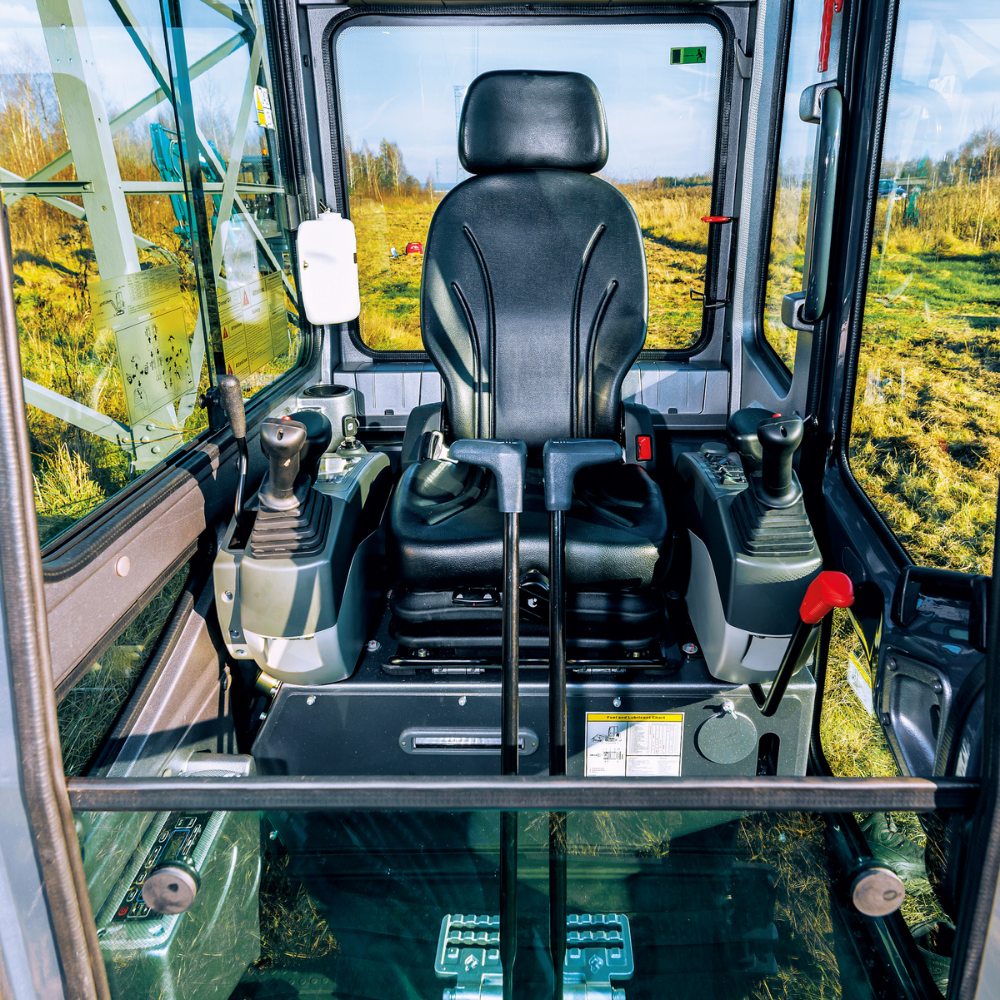

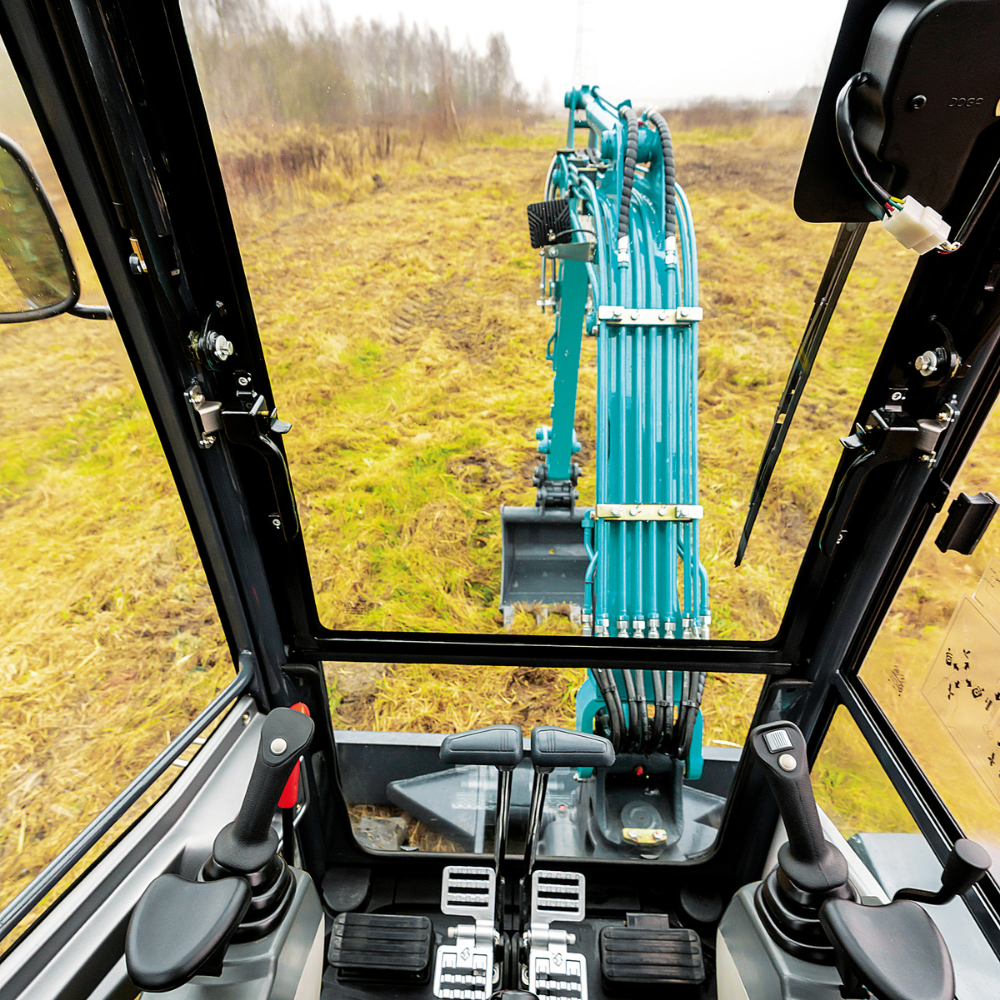

The Sunward SWE 25UF mini excavator is the zero-tail version of the SWE 25F mini excavators. As the SWE 25F, the SWE 25UF benefits from exceptionally good performance on the job. But its unique zero-tail compact design makes it the perfect option for tight jobsites where power is required. Its weight category makes it very easy to transport. In the Sunward tradition to always offer the best value for money, the SWE 25UF is no exception since it offers many features and up to 5 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE 25UF keeps you safe and provides every comfort in all working conditions.
Discover all the other advantages of the Sunward SWE 25UF.

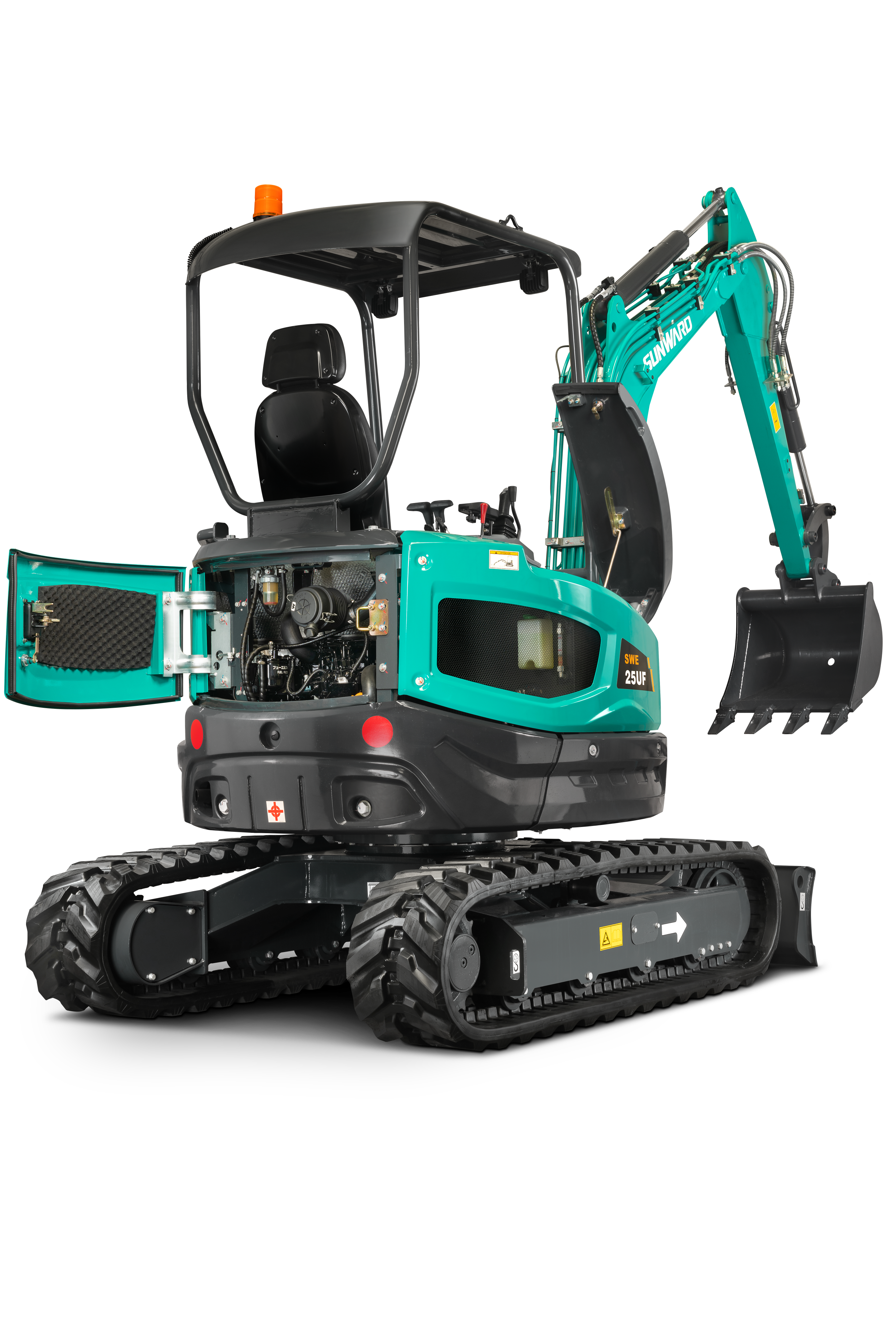

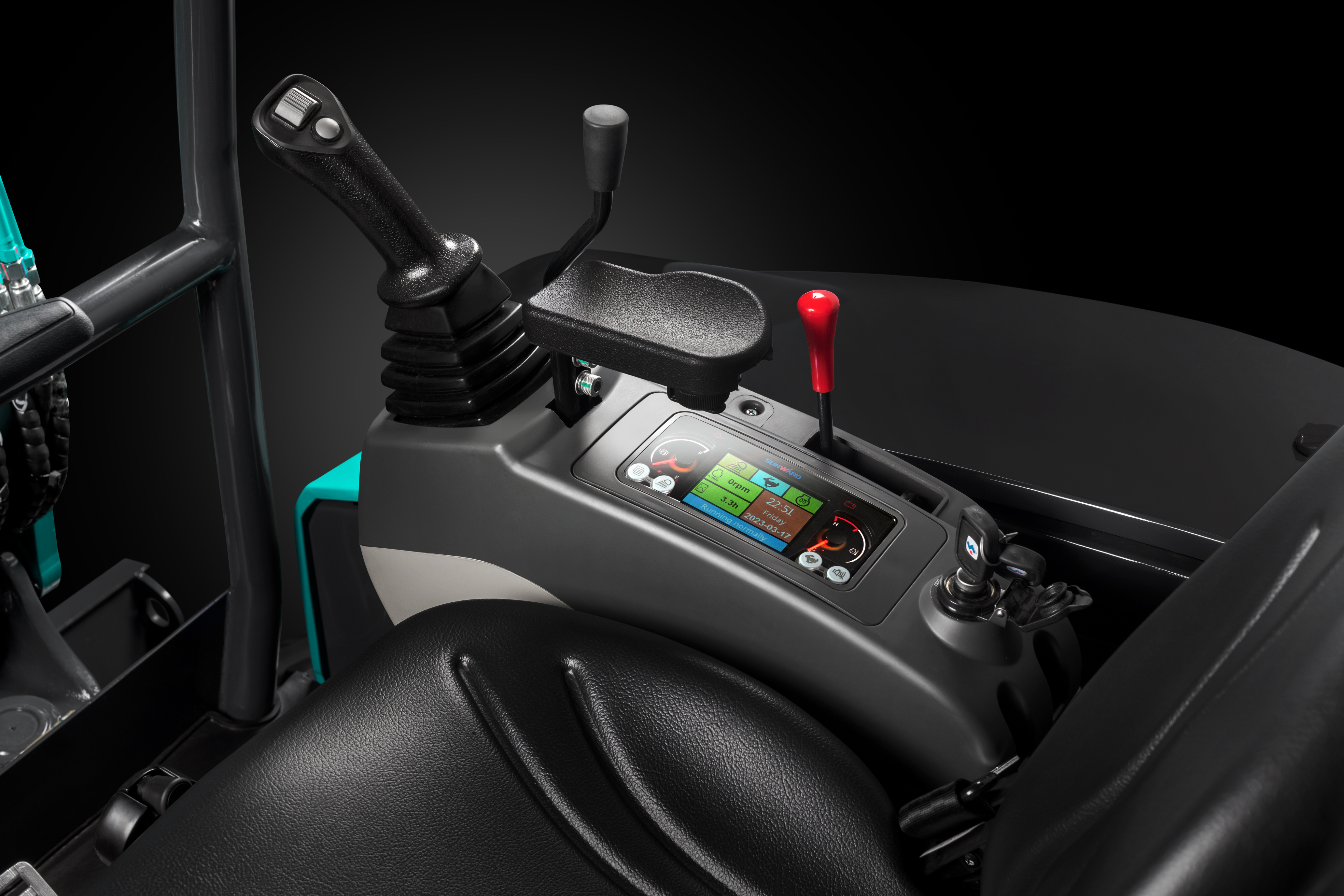

Type of cab Cab or Canopy
Operating weight 2 550 – 2 650 kg
Standard bucket Capacity 0,08 m³
Shipping length 4 262 mm
Shipping width 1 500 mm
Height over cabin 2 455 mm
Model Yanmar 3TNV80F-SPSU
Emission rating EU Stage V
Displacement 1.267 L
Rated power output 14.6 kW
Type 1 variable piston pump
Displacement 77 L/min
Hydraulic pressure 24.5 Mpa
Max. digging depth 2 840 mm
Max. digging reach 4 775 mm
Max. bucket digging force 24 kN
Max. arm digging force 14 kN
