SWE 155UF-2PB

Looking for an excavator that will tear up a job site without taking up too much room? The Sunward SWE 155UF-2PB medium excavator features a very short-tail swing and a 2-piece boom allowing it to work in a wide variety of urban tasks, including operating in confined spaces and along walls. It is designed to be versatile and durable, with a long lifetime.

Emission rating: EU Stage V
Operating weight 17 000 kg
Power output 93 kW
Max. digging depth 5 525 m
Width 2 600 mm

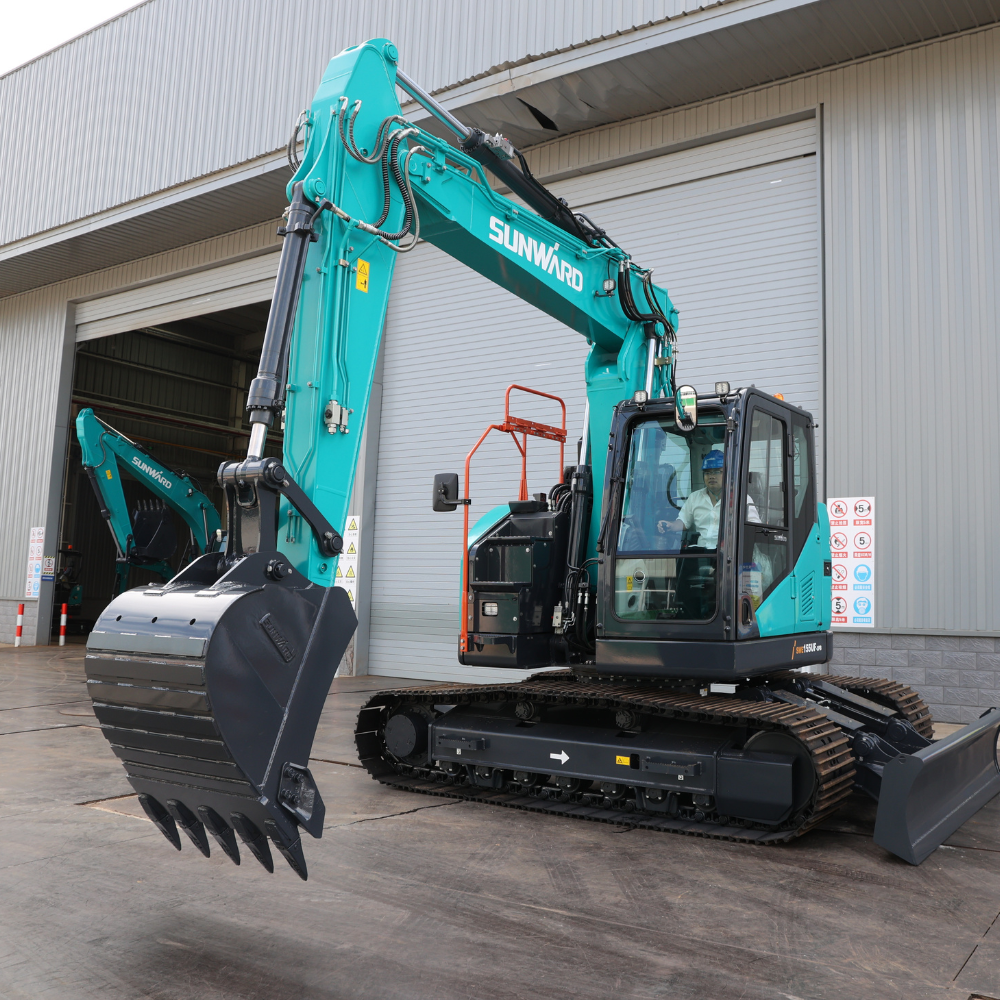

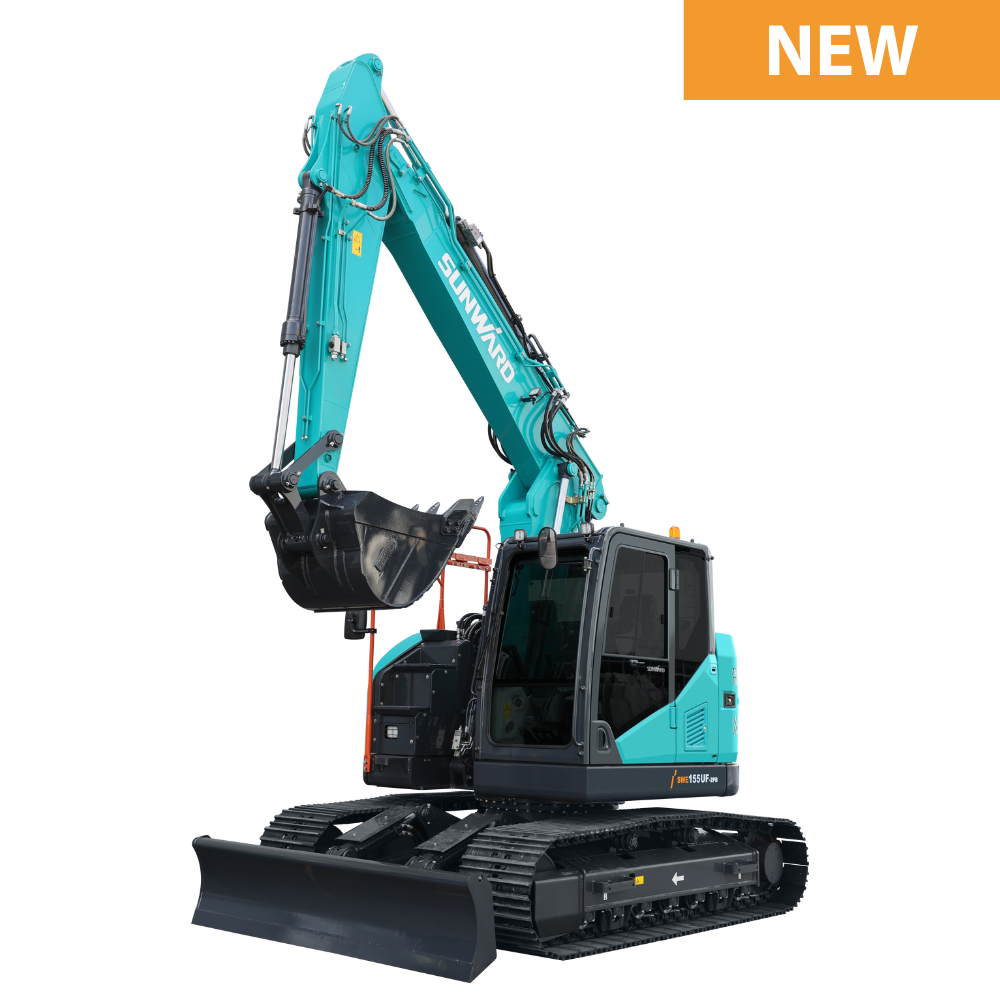

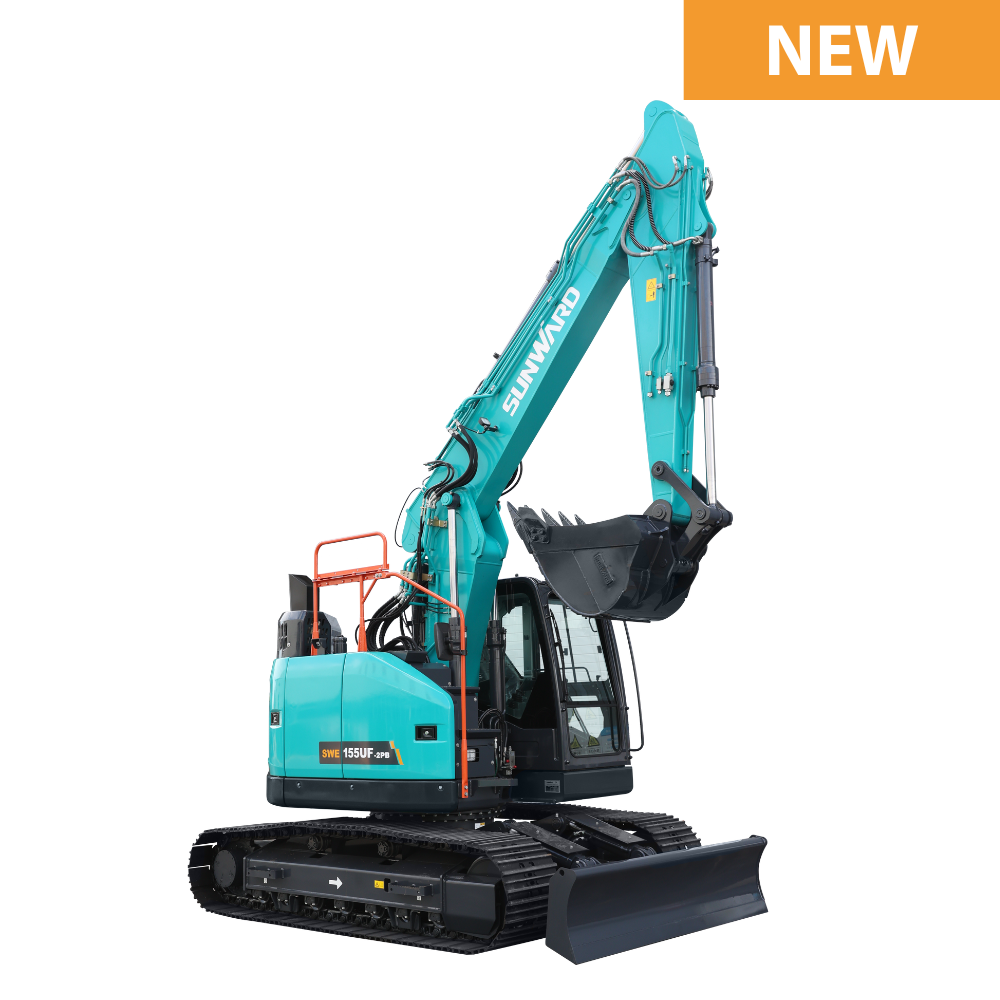

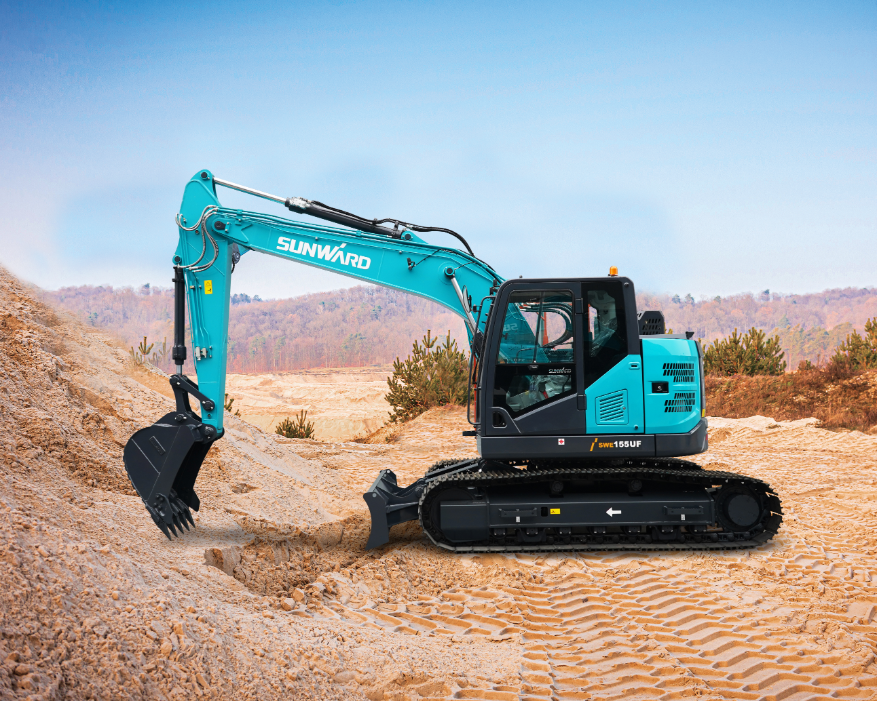

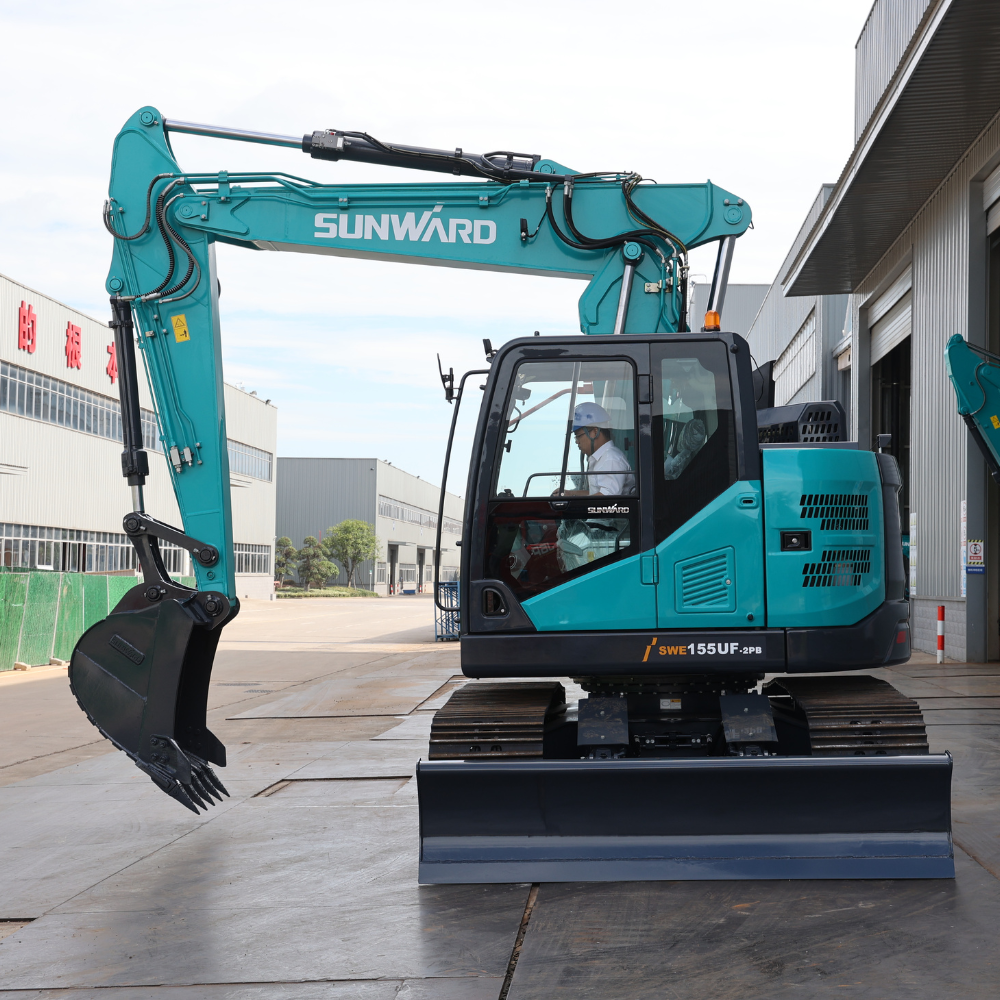

SUNWARD SWE 155UF-2PB

Looking for an excavator that will tear up a job site without taking up too much room? The Sunward SWE 155UF-2PB medium excavator features a very short-tail swing and a 2-piece boom allowing it to work in a wide variety of urban tasks, including operating in confined spaces and along walls. It is designed to be versatile and durable, with a long lifetime.

The SWE 155UF’s masterful design, Cummins EU Stage V engine, and enhanced hydraulics system deliver smooth operation and high productivity. This top‑of‑the‑line medium excavator offers excellent performance, comfortable and safe operation, and convenient maintenance.

In the Sunward tradition to always offer the best value for money, the SWE 155UF-2PB is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.

Discover all the other advantages of the Sunward SWE 155UF-2PB.

Operating weight 17 000 kg
Standard bucket Capacity 0.61 m³
Shipping length 7 825 mm
Shipping width 2 600 mm
Height over cabin 2 825 m
Model Cummins QSF3. 8
Emission rating EU Stage V
Displacement 3.8 L
Rated power output 93 kW
Type 2 variable piston pump
Displacement 2×126.4 L/min
Hydraulic pressure 31.4/34.3 Mpa
Max. digging depth 5 525 mm
Max. digging reach 8 370 mm
Max. bucket digging force 100 kN
Max. arm digging force 76 kN

Comming Soon

Comming Soon

Comming Soon

Emission rating

EU Stage V

Operating weight

1 880 kg

Power output

13.4 kW

Max. digging depth

2 206 mm

Width

990-1 360mm
